The Seiko 8M37-7000 is a watch model based on the 8M37 movement.
Parts List
280P09HN03 | crystal |
280WA9HN01 | crystal |
45MA1NA1 | crown |
FE298BAA1 | case back gasket - case back gasket |
86572130 | crystal gasket |
86590950 | bezel gasket - plastic gasket for bezel |
80609671 | pusher |
YB23A | band - metal band |
03SR03AG | others - hand |
0351148 | others - winding stem |
82342935 | others - bezel |
82840730 | others - case ring |
8M3710 | others - machine code |
8M377000SA | others - case |
8M377000XS1Z | others - dial |
A180CS | others - push pin |
81350540 | others - button spring |
83200273 | others - button spring clip |
DE010BAA1 | others - crown and stem gasket |
EC0060B0A | others - button gasket |
11Y11CGH | others - hour hand |
11Y11CGM | others - minute hand |
81402399 | others - button spring clip |
Caliber 8M37

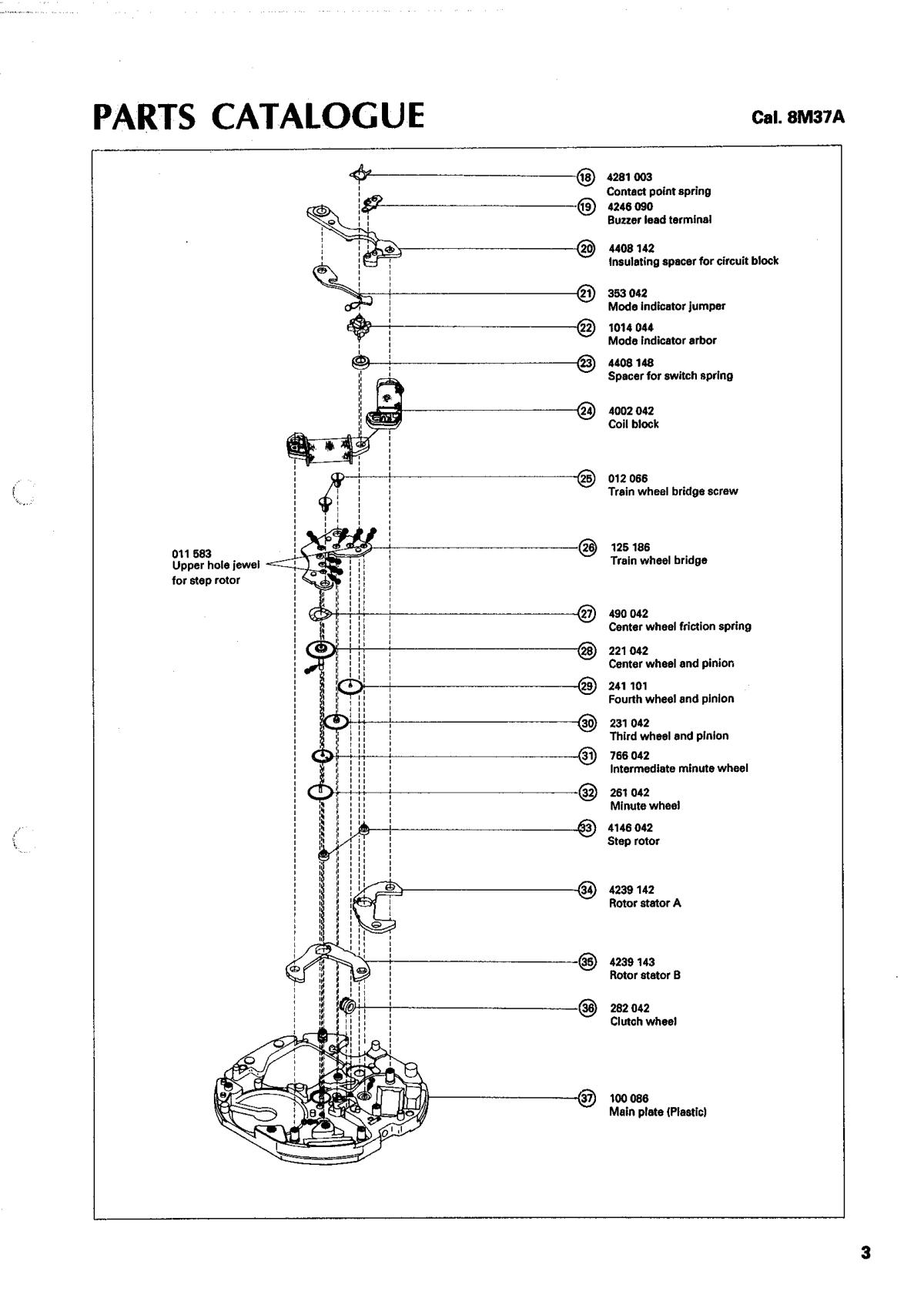

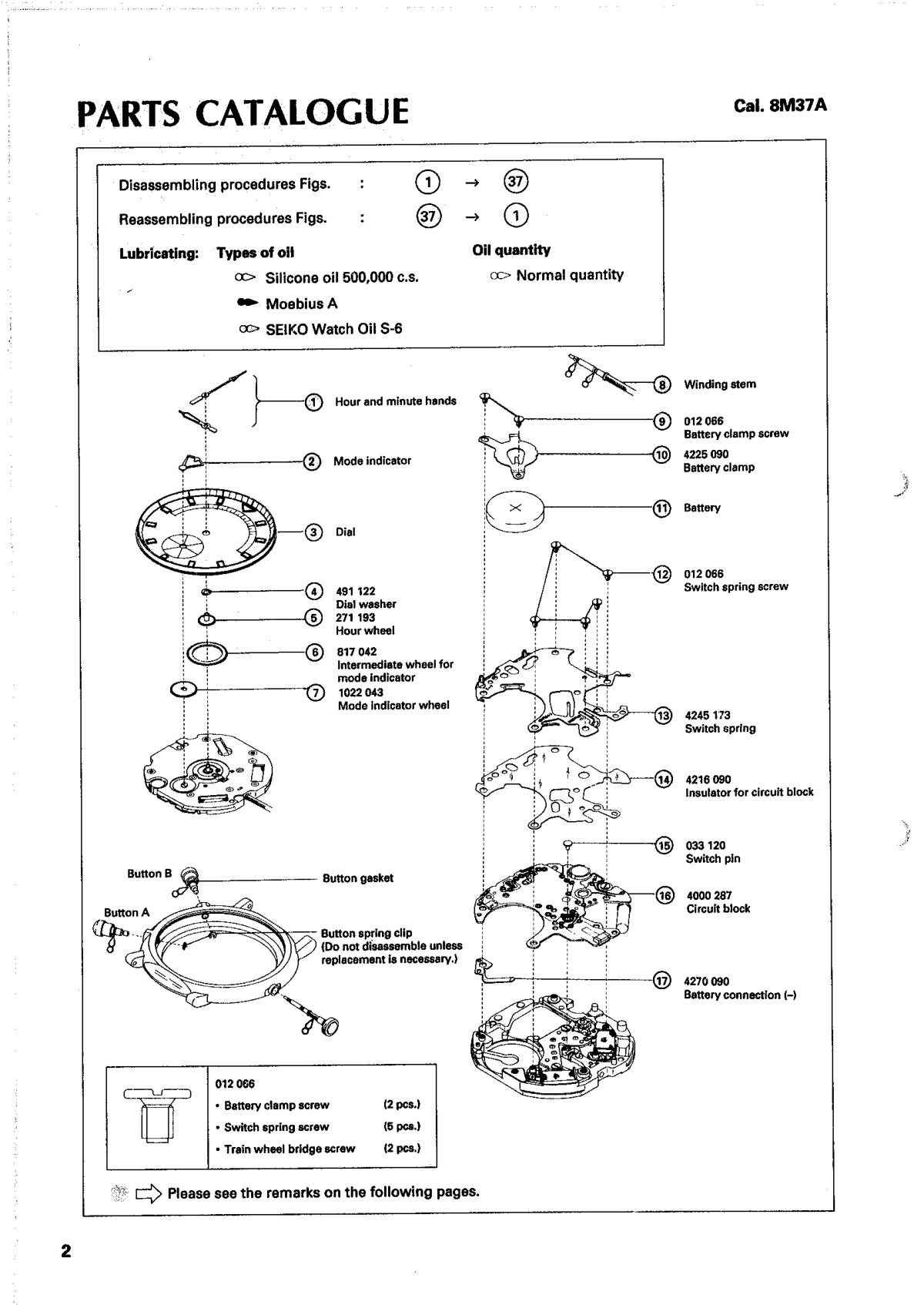

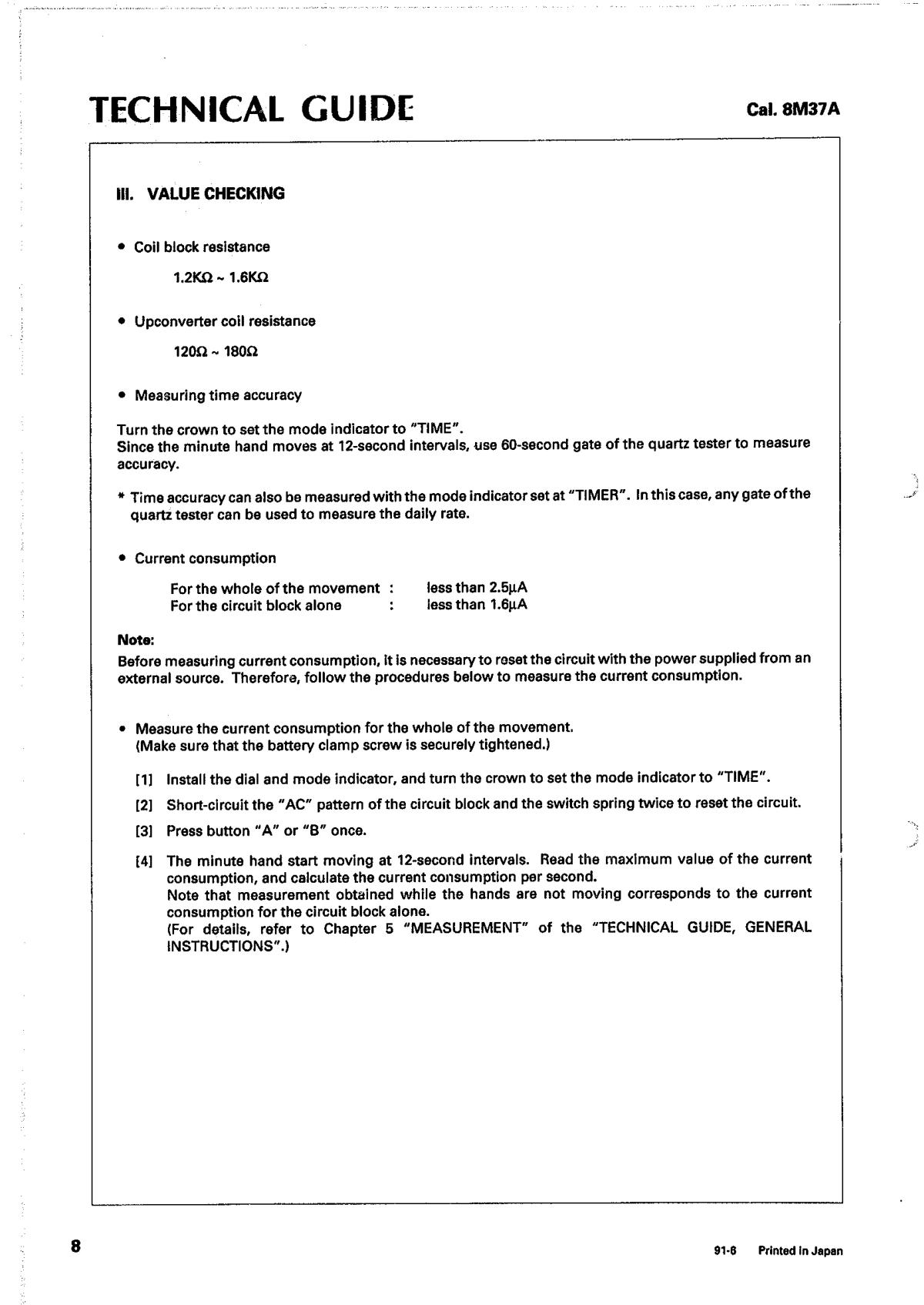

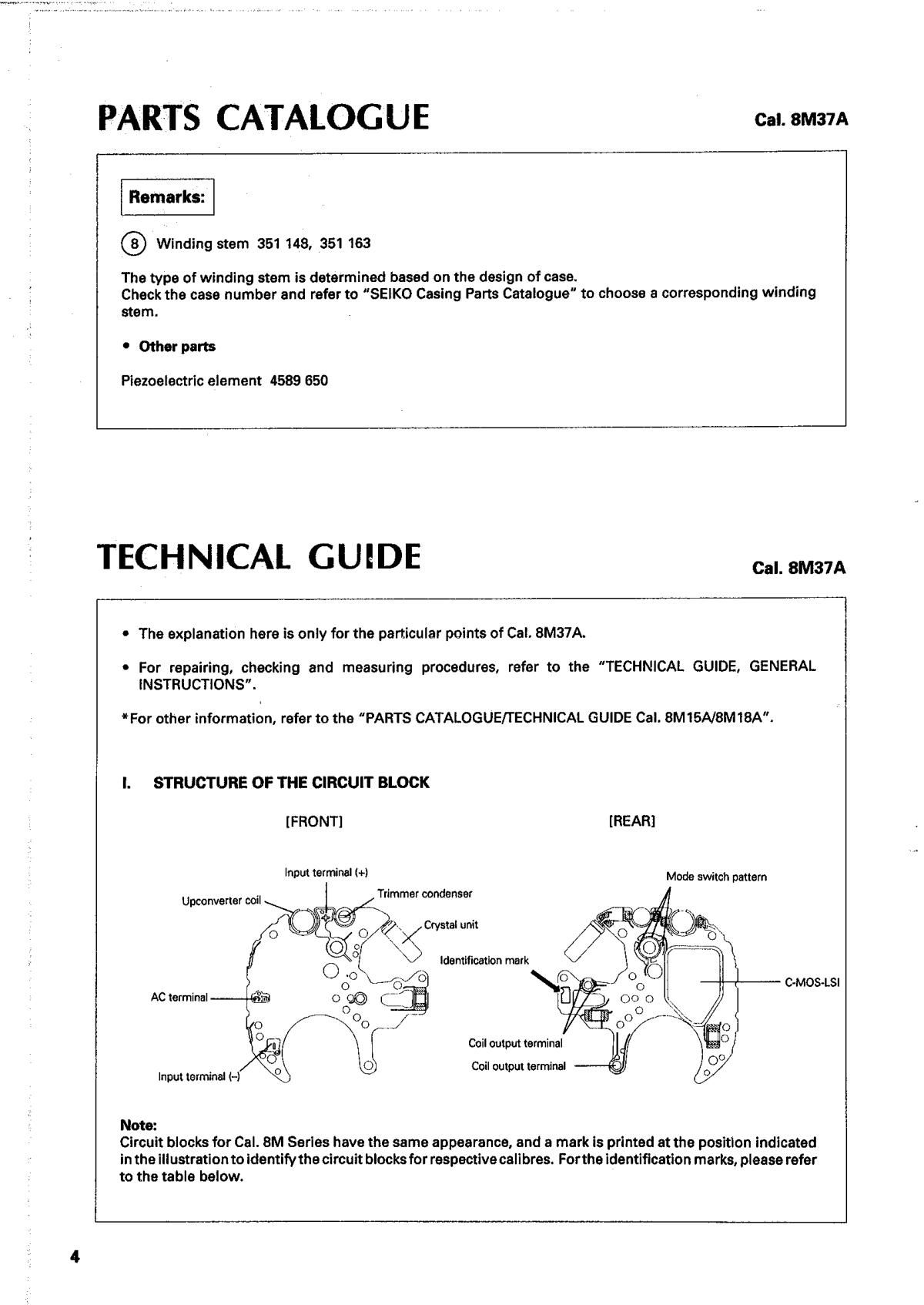

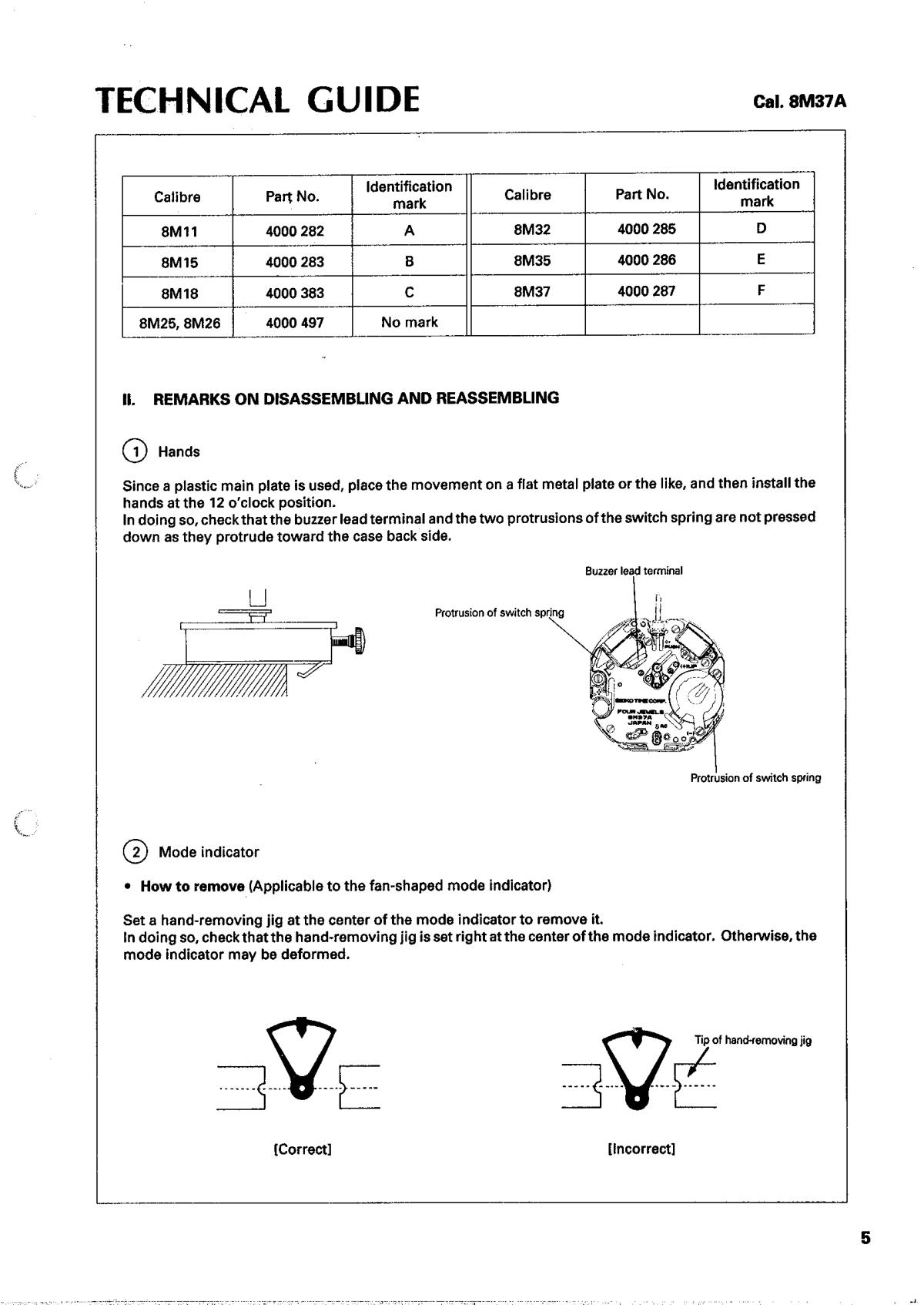

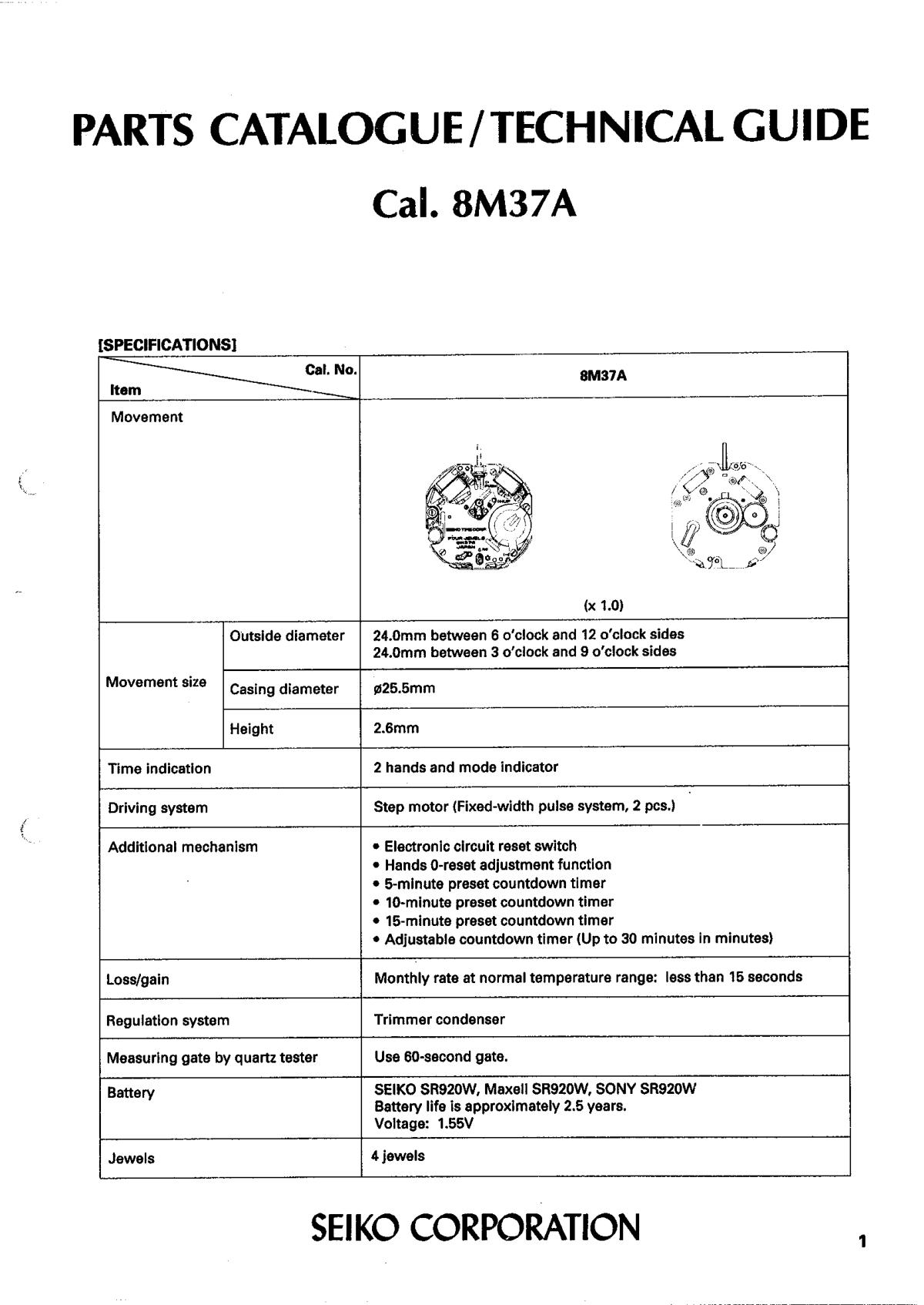

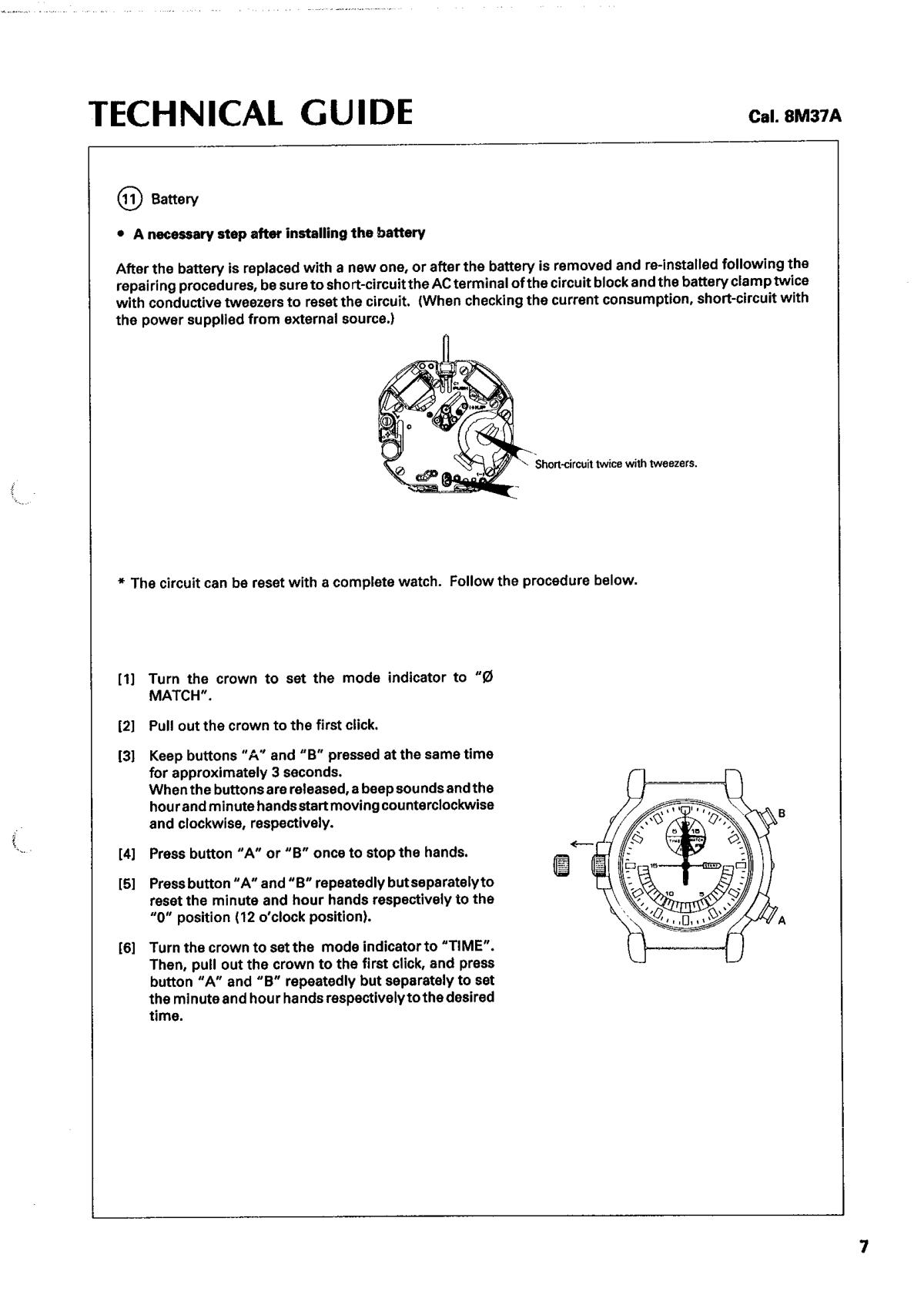

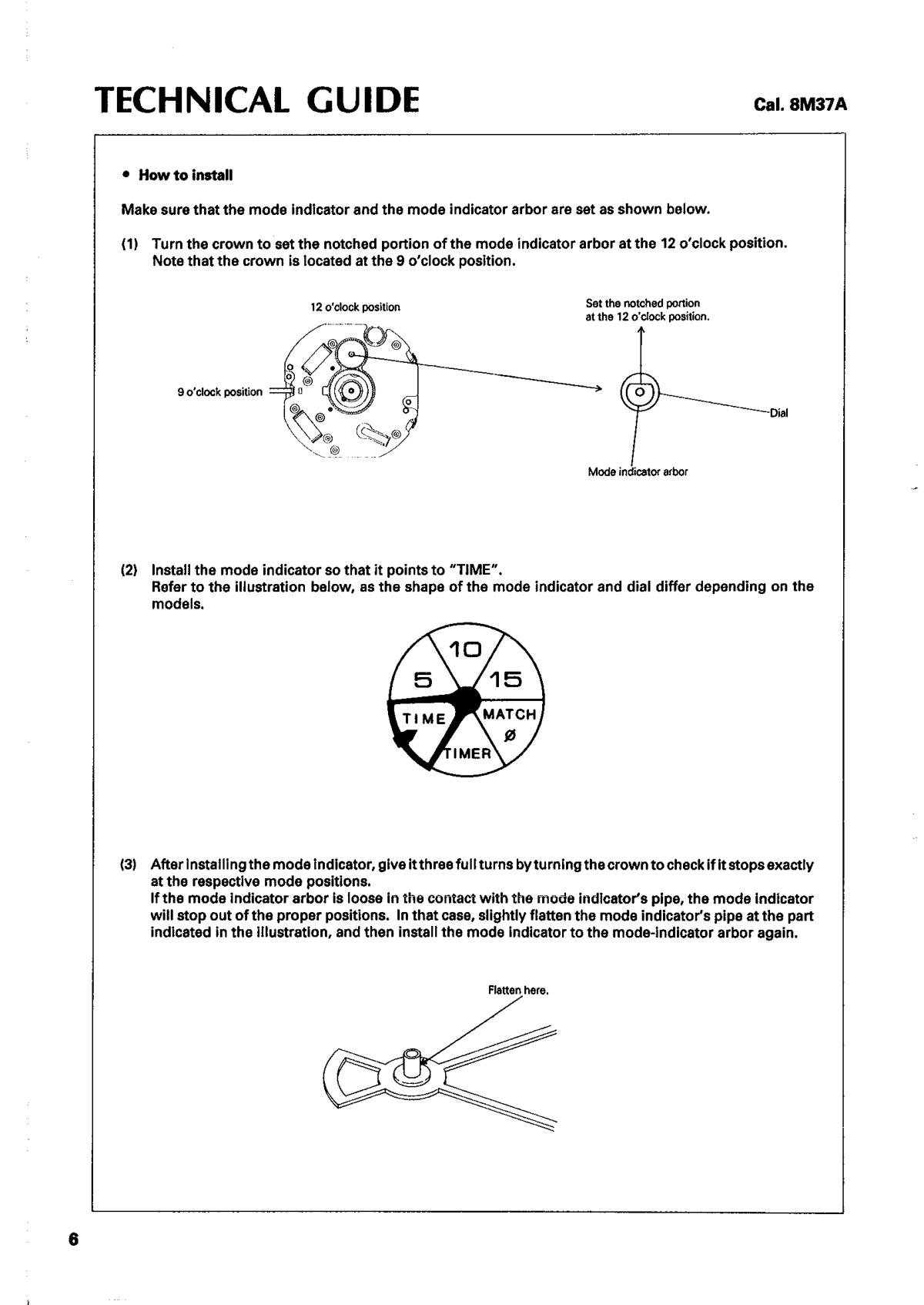

![Caliber manual page](https://www.theseikoguy.com/media/movements/8/8M37A_caliber_en_1.jpg)
![Caliber manual page](https://www.theseikoguy.com/media/movements/8/8M37A_caliber_en_2.jpg)
![Caliber manual page](https://www.theseikoguy.com/media/movements/8/8M37A_caliber_en_3.jpg)
![Caliber manual page](https://www.theseikoguy.com/media/movements/8/8M37A_caliber_en_4.jpg)
![Caliber manual page](https://www.theseikoguy.com/media/movements/8/8M37A_caliber_en_5.jpg)
![Caliber manual page](https://www.theseikoguy.com/media/movements/8/8M37A_caliber_en_6.jpg)
![Caliber manual page](https://www.theseikoguy.com/media/movements/8/8M37A_caliber_en_7.jpg)
![Caliber manual page](https://www.theseikoguy.com/media/movements/8/8M37A_caliber_en_8.jpg)
