Seiko 7T86-0AB0 Watch Guide

The Seiko 7T86-0AB0 is a watch model based on the 7T86 movement.

Parts List

330P02SB0Bcrystal - crystal (sapphire)
8E70AWSZW1crown - crown(screw down)
FE308BAD2case back gasket - case back gasket
86566900crystal gasket - crystal plastic gasket
86584880bezel gasket - plastic gasket for bezel
80633889pusher - button (2h)
89872924pusher - button lever
4A0T1JMband - metal band
4A0T1JMLKband - link
4A1R1JTband - leather band
4A1R1JTBDBband - leather without buckle
4A1R1JVband - leather band
4A1R1JVBDBband - leather without buckle
AA15WSA03Bclasp - buckle
H0GW12SA05Bclasp - clasp
3AA045F0AAXhand - small hand(6h long)
3AX132F0AAMhand - hand
1AA090L0BEWhand - hour hand
1CA030F2BAZhand - small hand(6h short)
2BA135L2BEWhand - minute hand
3AA040F0AA4others - small hand(12h)
3AA030F0AA7others - sub hand (10h)
0866651others - holding ring for dial
81181459others - bracelet fixing pipe
81601039others - bracelet fixing pin
0351583others - winding stem
81354210others - button spring
83200273others - button spring clip
AD006BAD1others - crown and stem gasket
J140CSothers - push pin
W180200BSothers - wave pin (band)
Z200TSothers - push pin (clasp and band)
81510669others - screw(2h)
84384884others - dial ring
86510169others - conducting plate
87334804others - bezel
7T860AB0others - case back
7T860AB001Aothers - case
7T860AB001Bothers - case
7T860AB0XB1Zothers - dial
7T860AB8XB1Zothers - dial
7T862others - machine code
0A0150B0Aothers - crown and stem gasket
89995390others - pusher spacer

Caliber 7T86

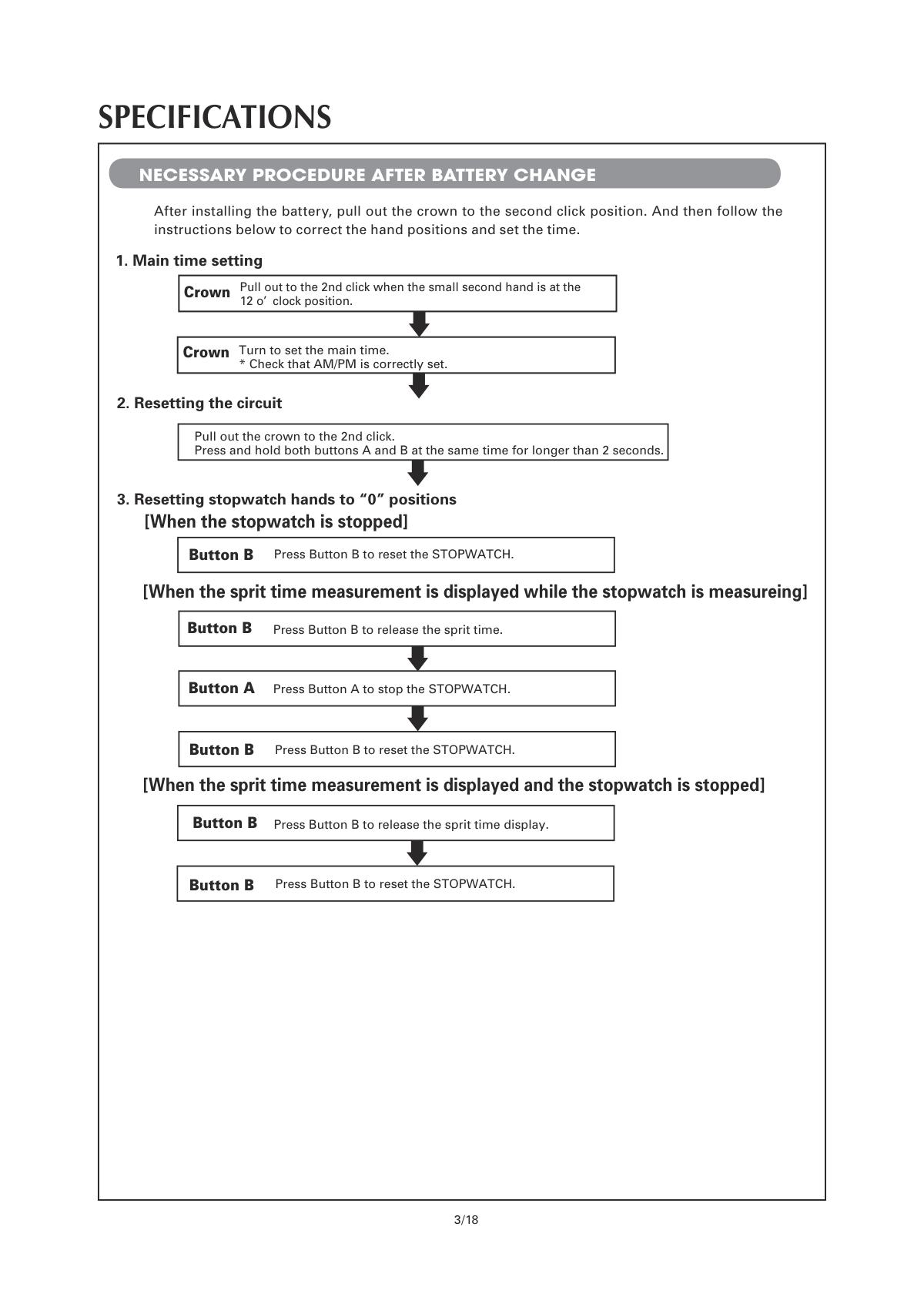

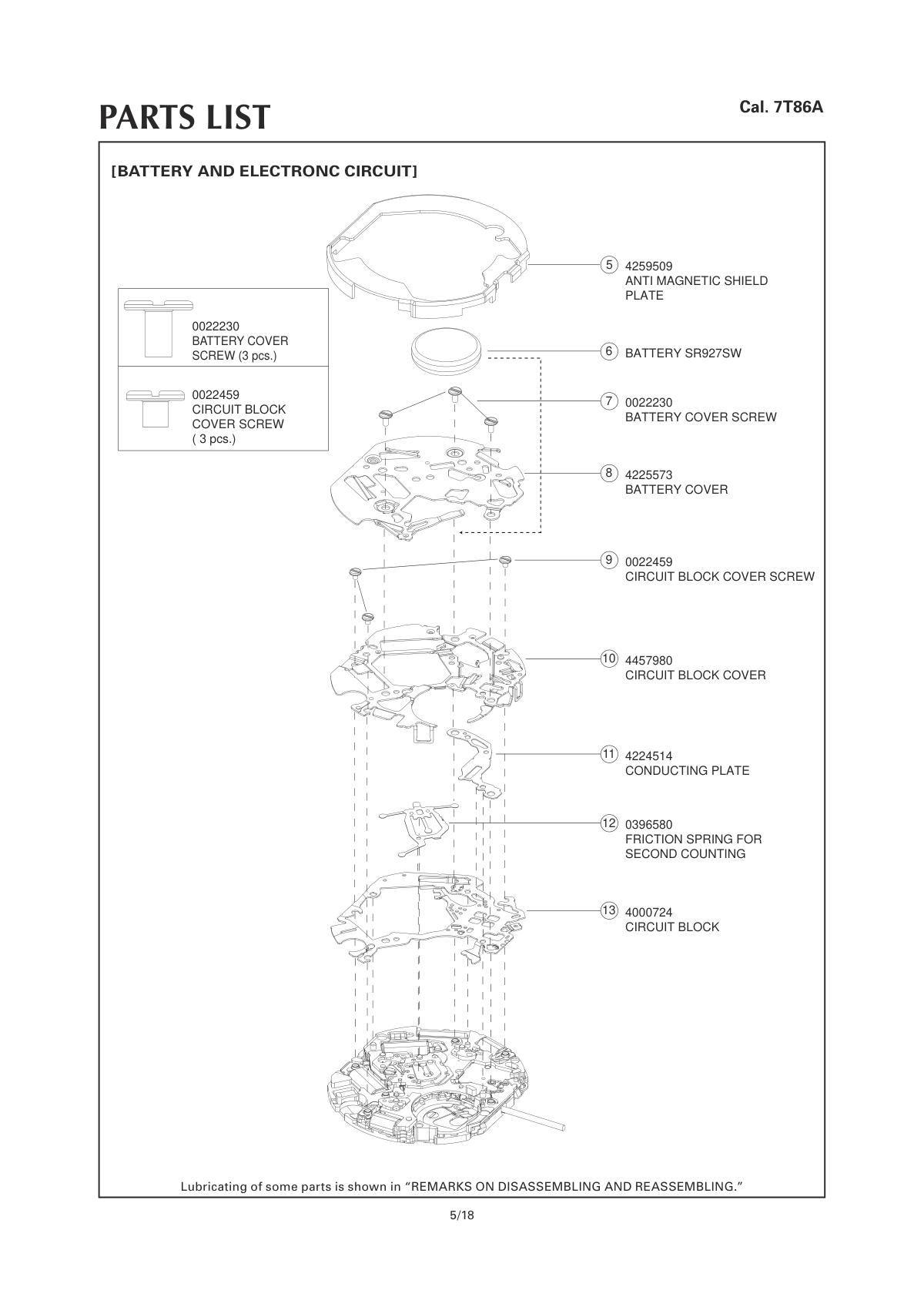

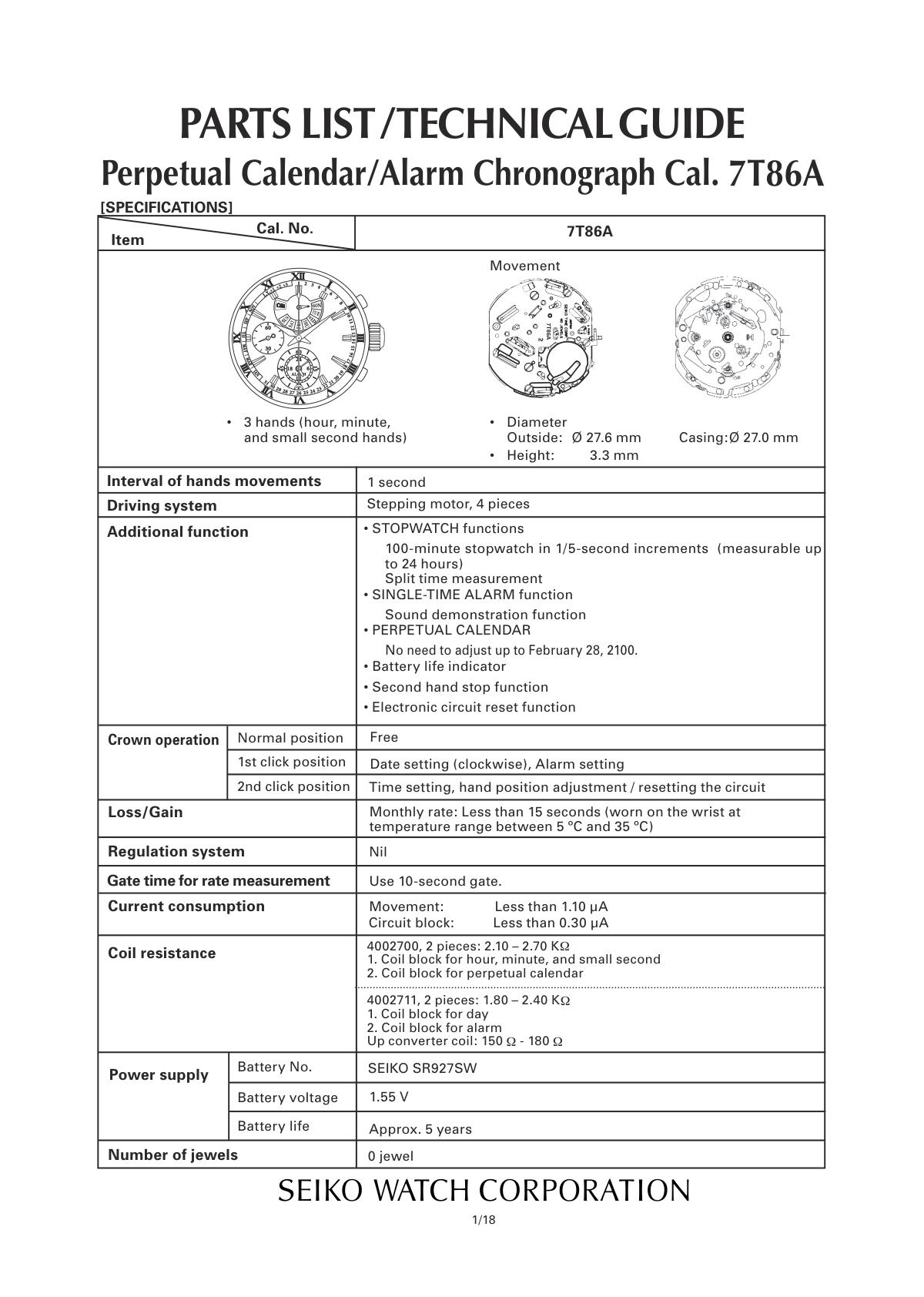

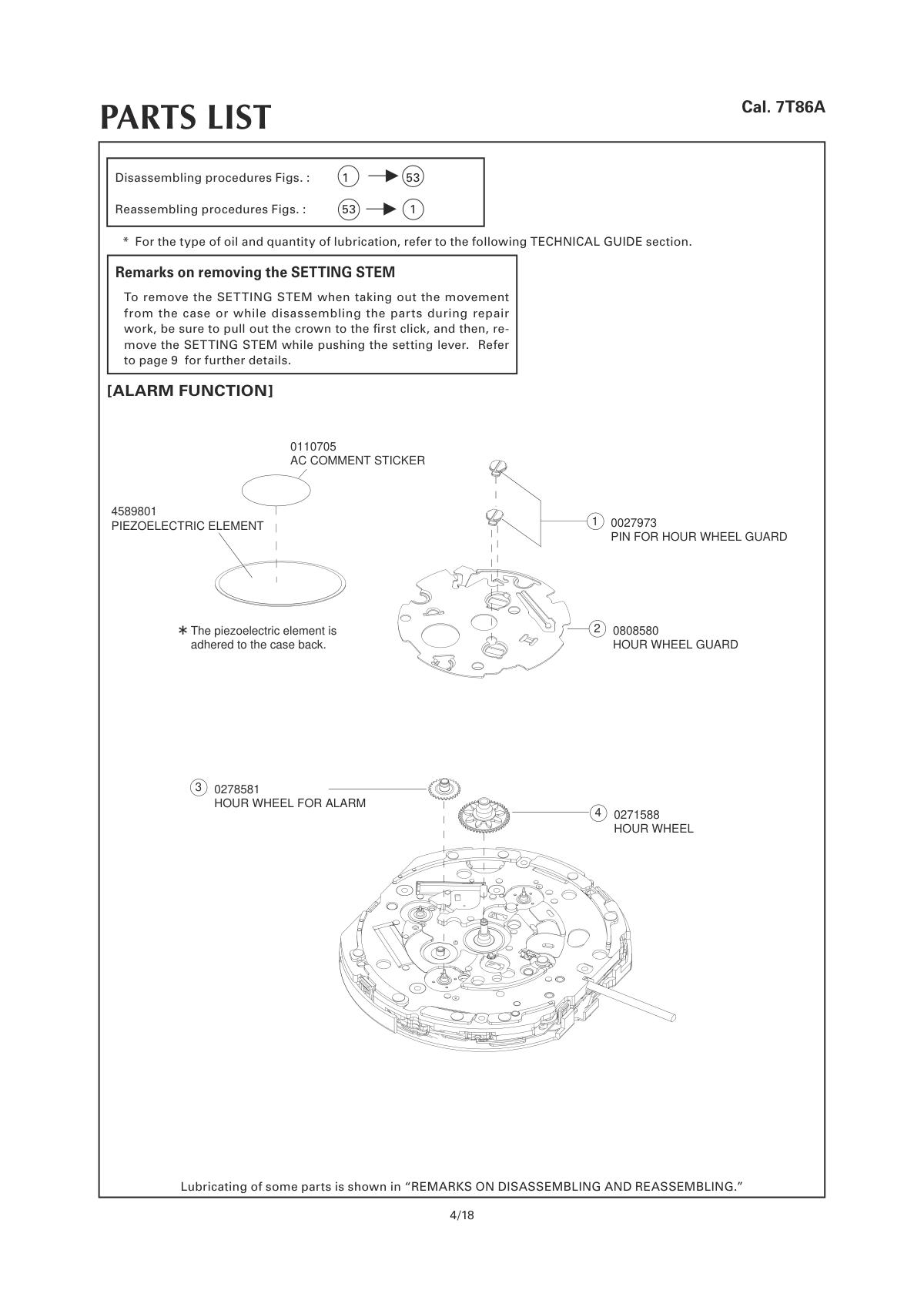

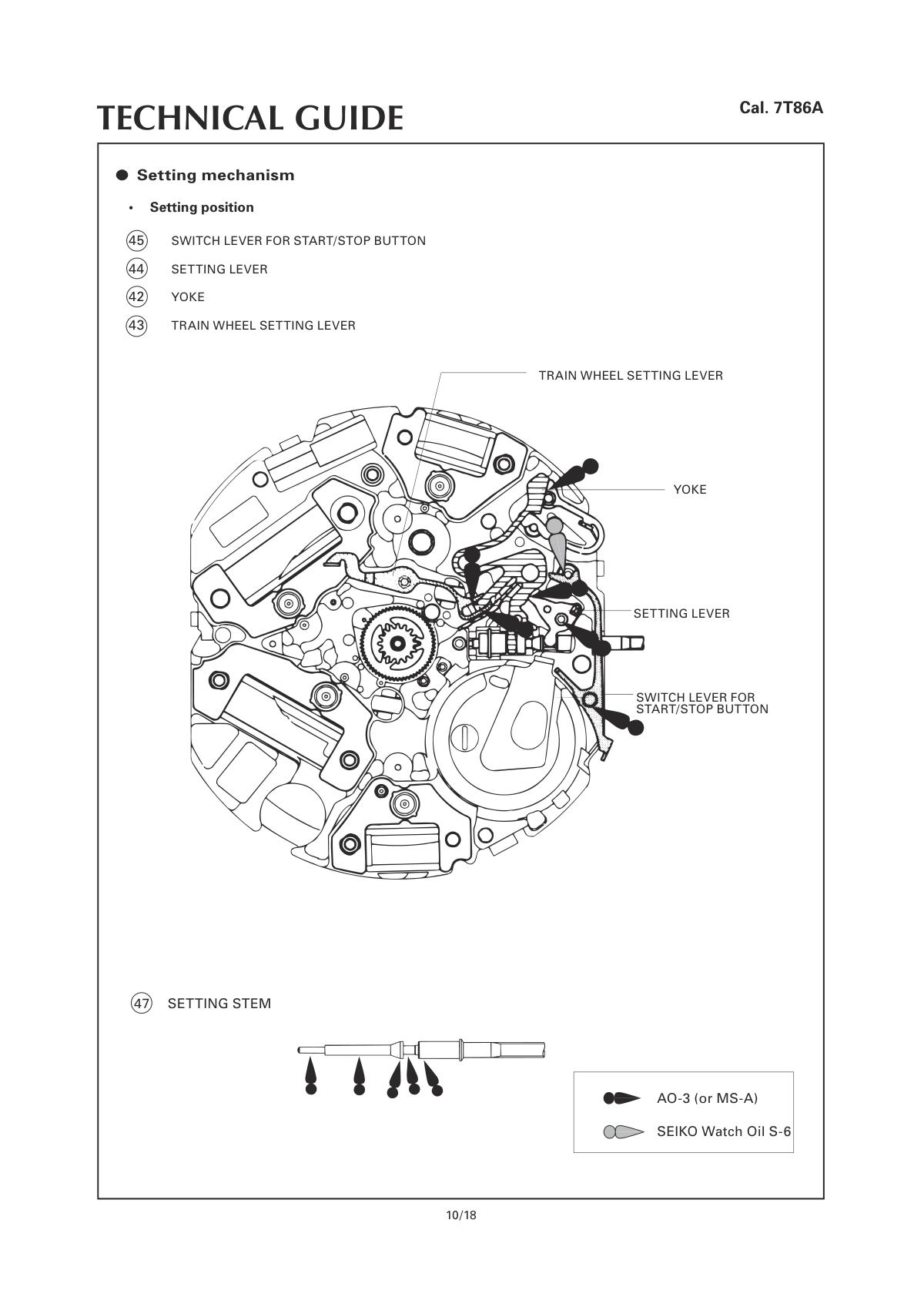

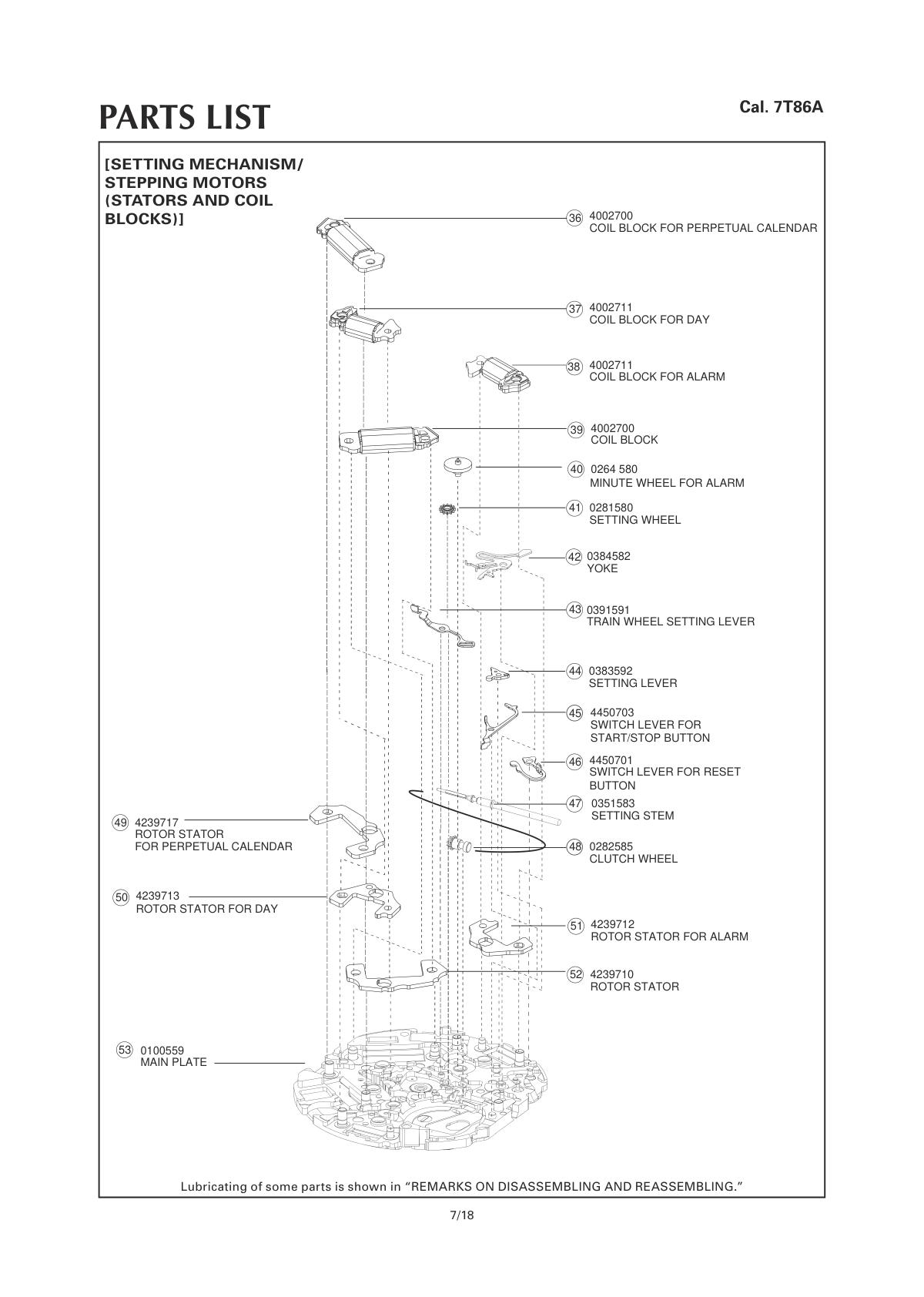

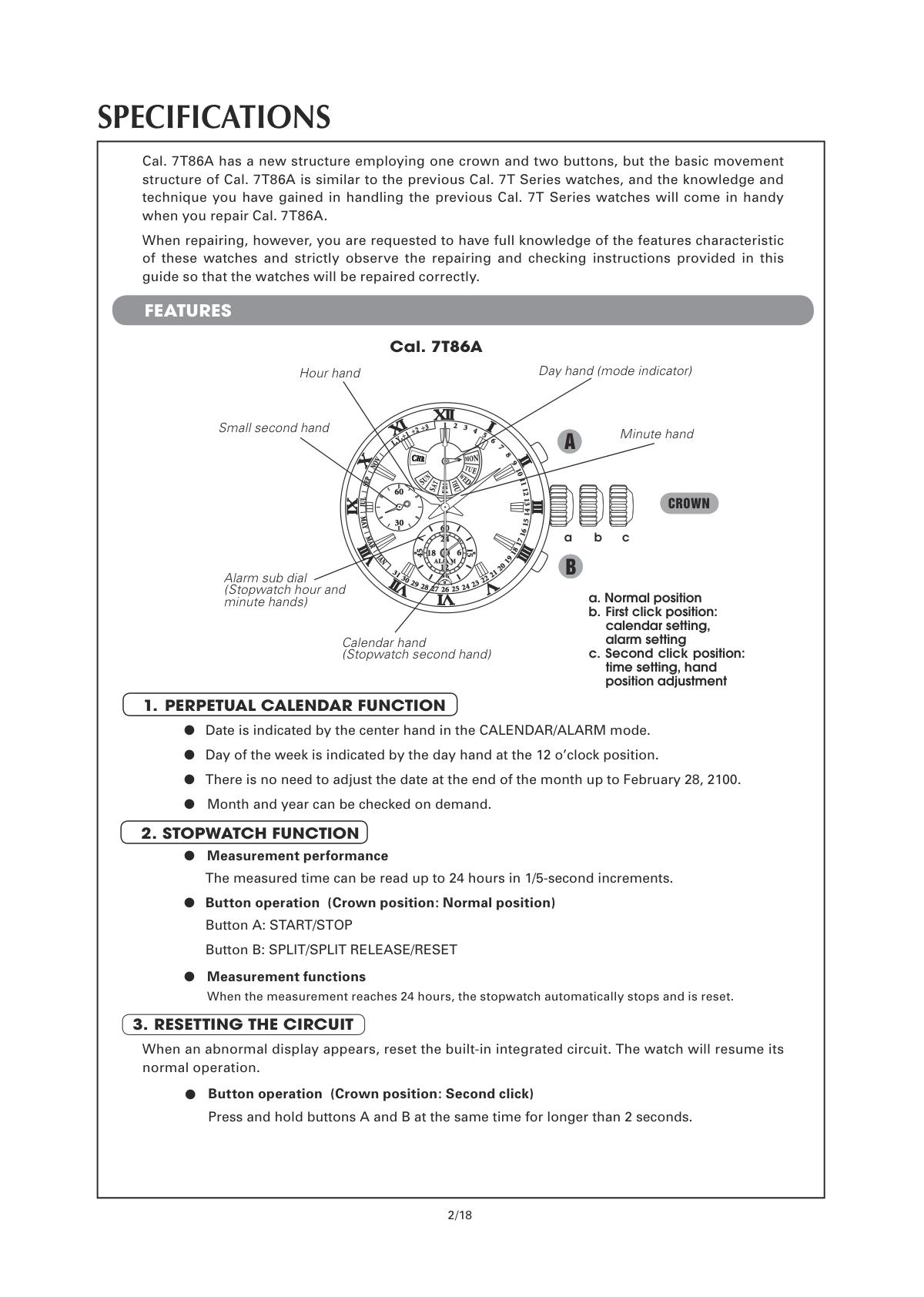

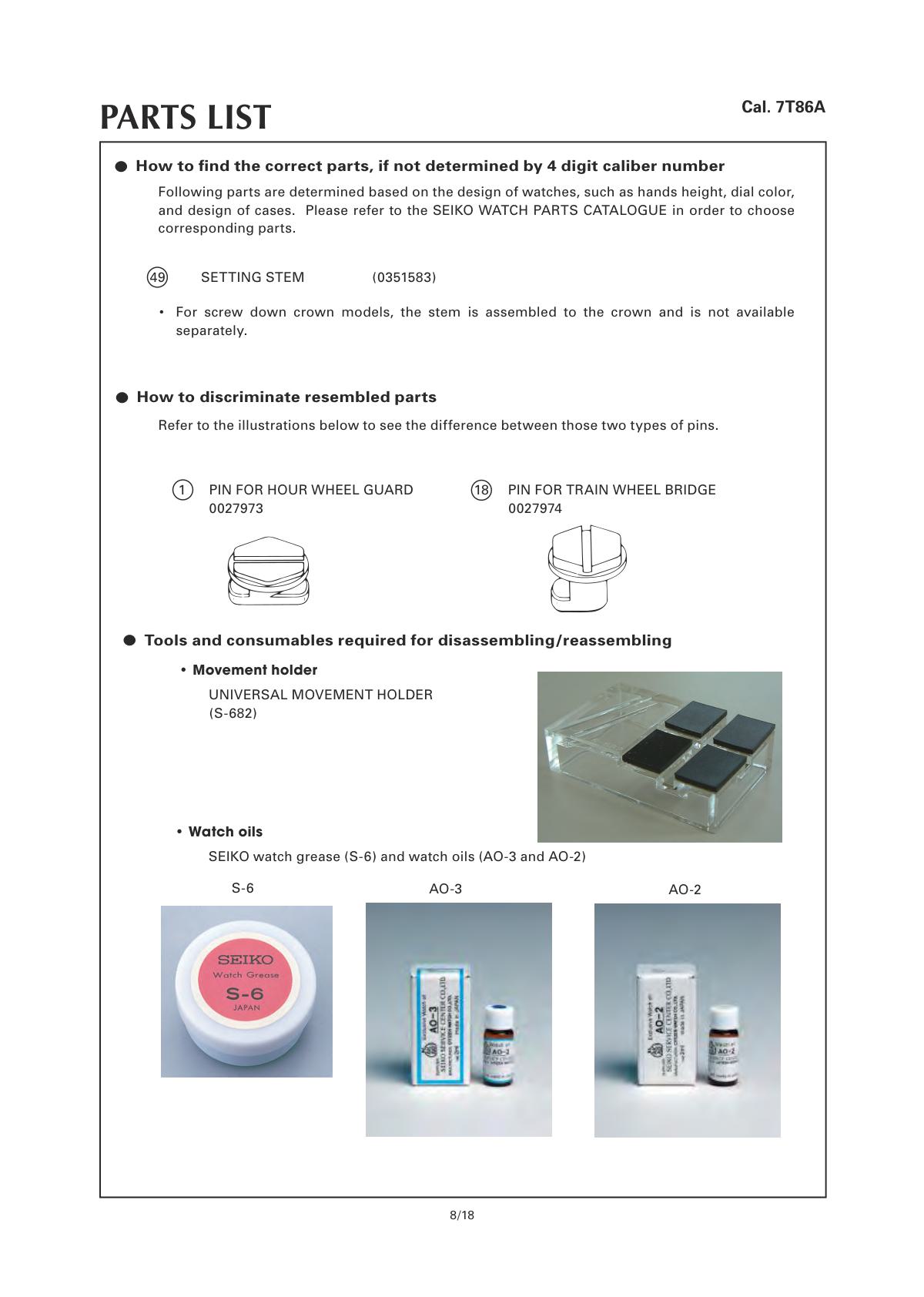

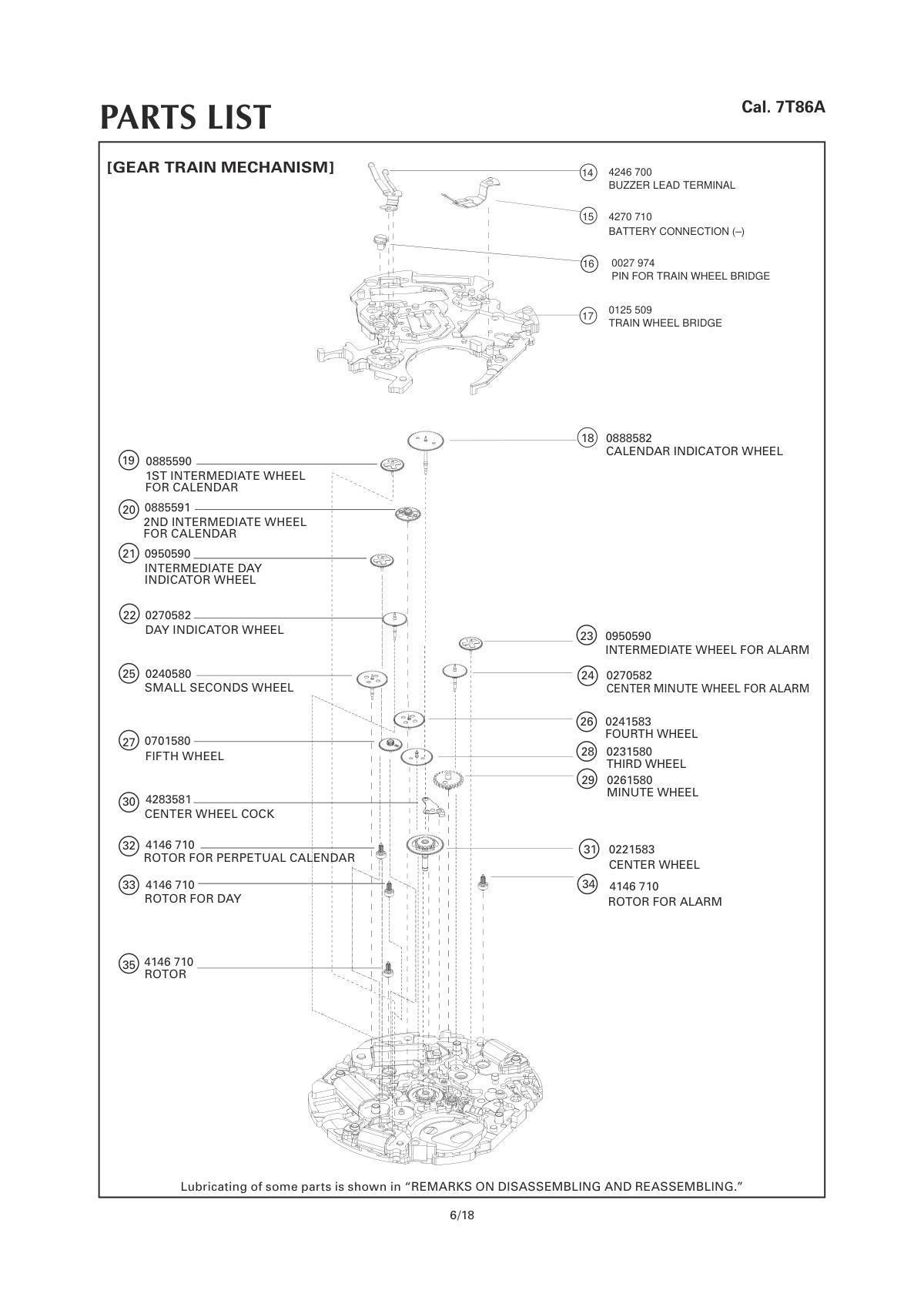

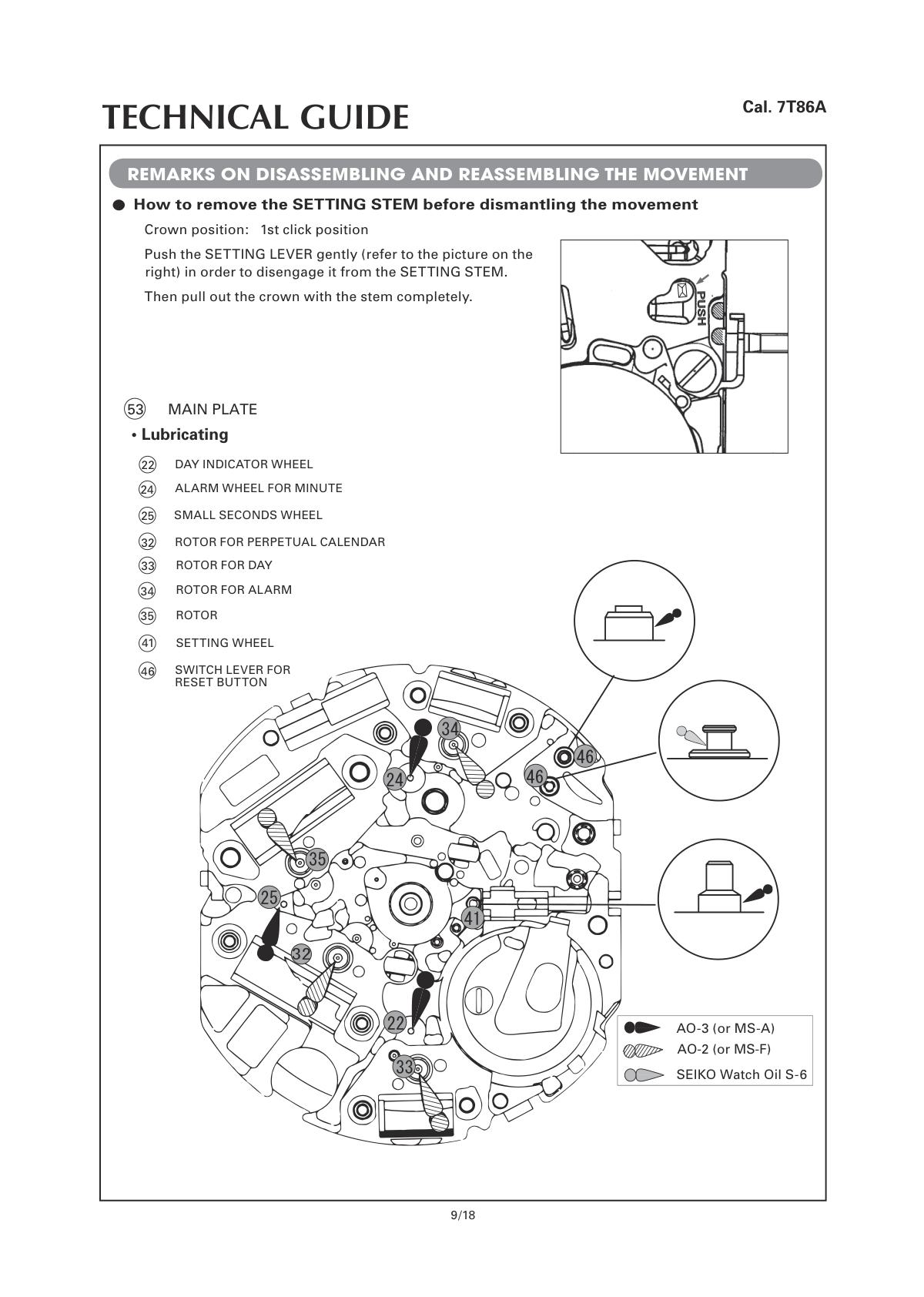

Caliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual page

Other models with the same movement

7T86-0AA0
7T86-0AC0
7T86-0AD0
7T86-0AF0
