Seiko 5T82-0AF0 Watch Guide

The Seiko 5T82-0AF0 is a watch model based on the 5T82 movement.

Parts List

310PB4JN02crystal - crystal (inorganic)
8K65AXSNN1crown - crown (3h)
8K65AXSNW1crown - crown (3h)
FE318BAD2case back gasket - case back gasket
86179152crystal gasket - plastic gasket for crystal
86565100crystal gasket - plastic gasket for crystal
86566860bezel gasket - plastic gasket for bezel
A35A78SMN0Apusher - button (2h)
A35A78SMS0Apusher - button (4h)
4A171JMband - metal band
4A171JMLKband - link
4A172MMband - metal band
H00W14SA03Bclasp - clasp
1CX030F0BABhand - small hand(6h short)
1CX030F0BANhand - small hand(12h short)
1CX030F0BAYhand - small hand(12h short)
3AX125F3A4Fhand - second hand
1AA085F2BESothers - hour hand
2BA125F0BESothers - minute hand
3AA035F2AANothers - small hand (9h)
3AA040F0AABothers - sub hand
3AX125F3AZKothers - hand
3AX125F3AZTothers - hand
3AX125F3AZXothers - hand
3AA035F2AACothers - sub hand
1CX030F0BAWothers - small hand (6h)
0351583others - winding stem
83200273others - button spring clip
81351630others - button spring
AD006BAD1others - crown and stem gasket
0866788others - holding ring for dial
0878527others - date dial
S220CSothers - push pin
4A171JMEPothers - endpiece
5T820AF0others - case back
5T820AF001Aothers - case
5T820AF001Dothers - case
5T820AF002Aothers - case
5T820AF002Dothers - case
5T820AF003Aothers - case
5T820AF003Dothers - case
5T820AF004Aothers - case
5T820AF004Dothers - case
5T820AF005Aothers - case
5T820AF005Dothers - case
5T820AG0X913others - dial
5T820AG0X923others - dial
5T820AG0X933others - dial
5T820AG0X943others - dial
5T820AG0XS13others - dial
5T820AG8X913others - dial
5T820AG8X923others - dial
5T820AG8X933others - dial
5T820AG8X943others - dial
5T820AG8XS13others - dial
5T822others - machine code
84382964others - dial ring
84382965others - dial ring
84382966others - dial ring
84382967others - dial ring
84382968others - dial ring
86510149others - conducting plate
87332864others - bezel
87332869others - bezel
87332884others - bezel
87390824others - decorative bezel
3AA040F0AANothers - small hand (6h)

Caliber 5T82

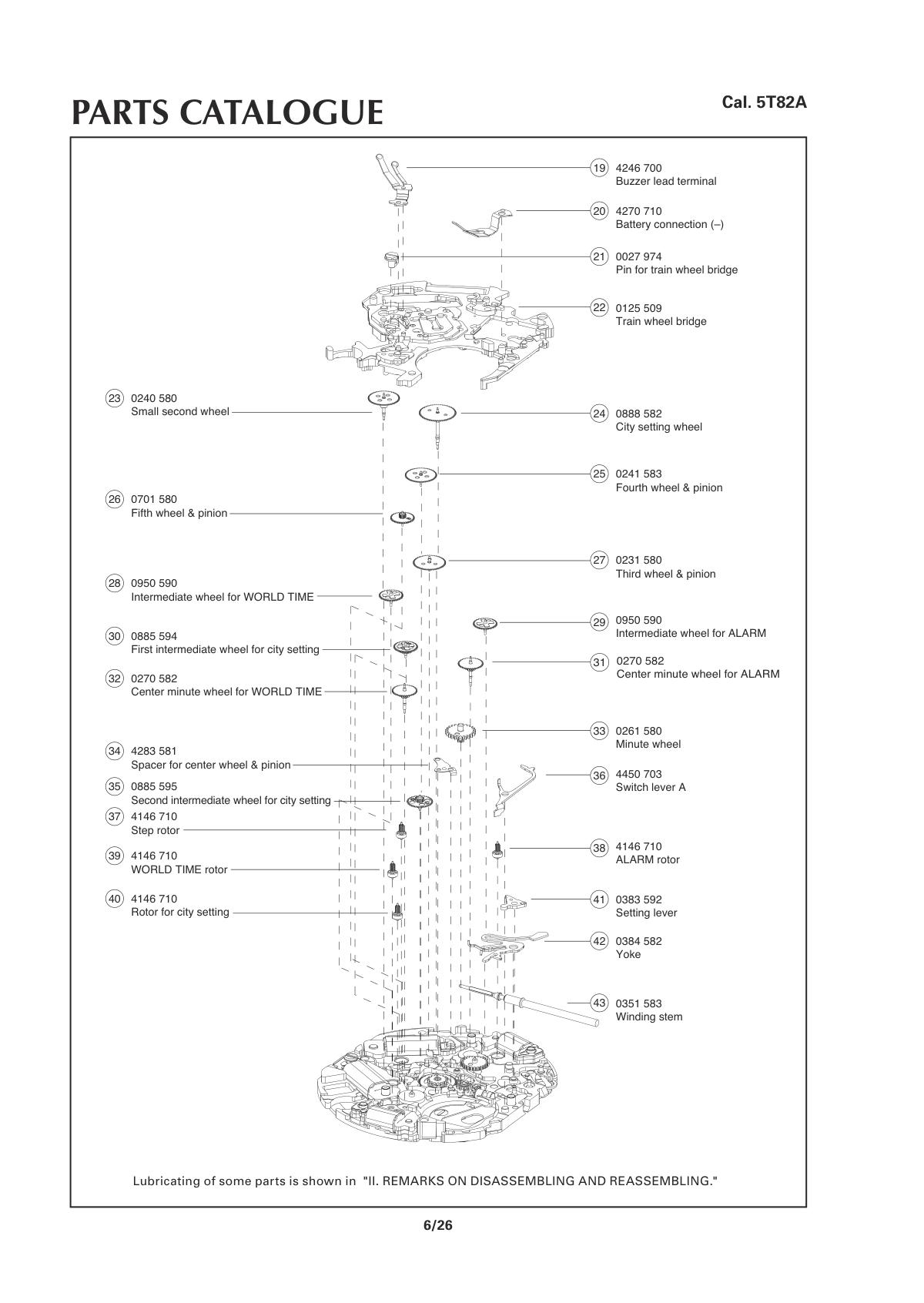

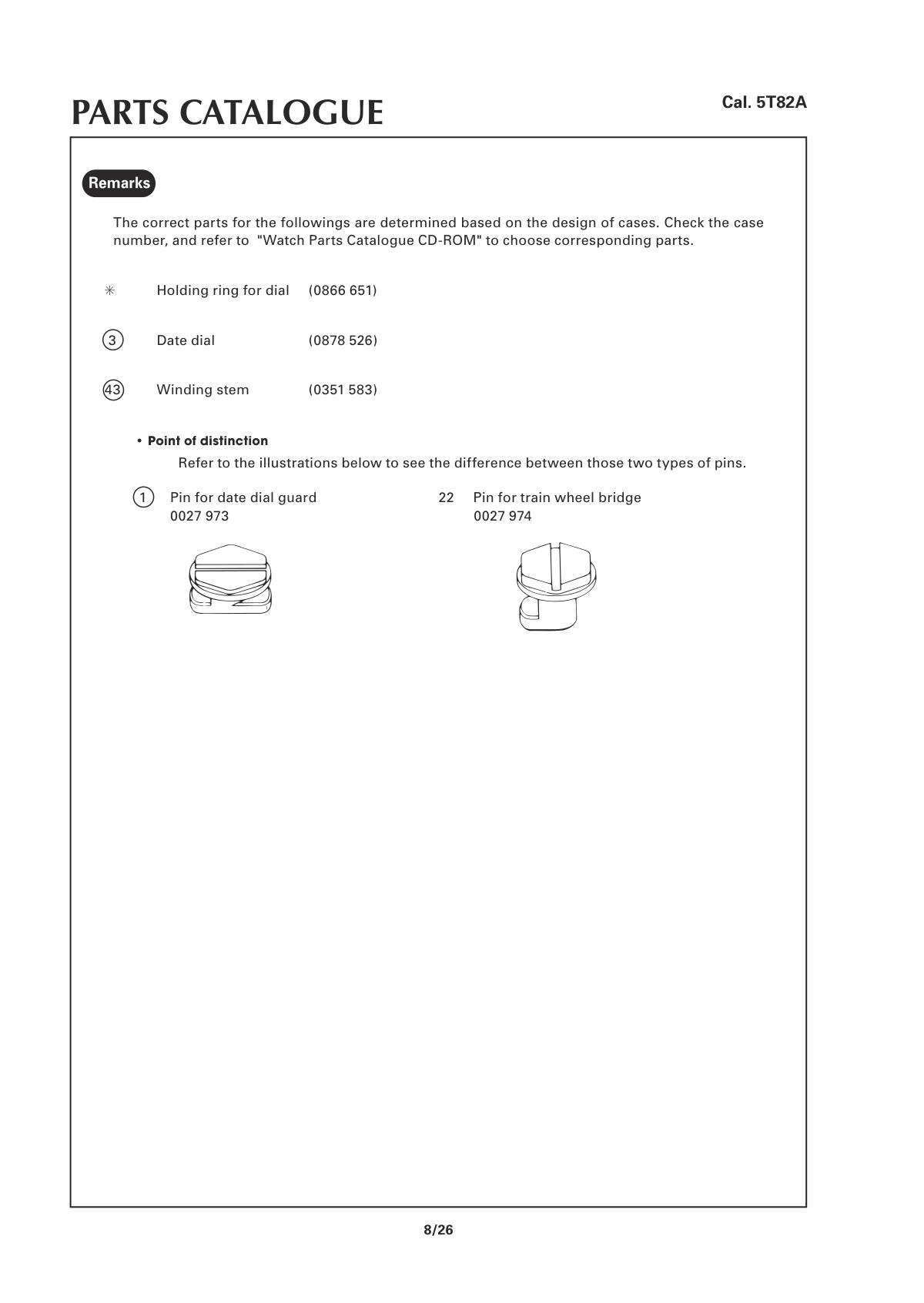

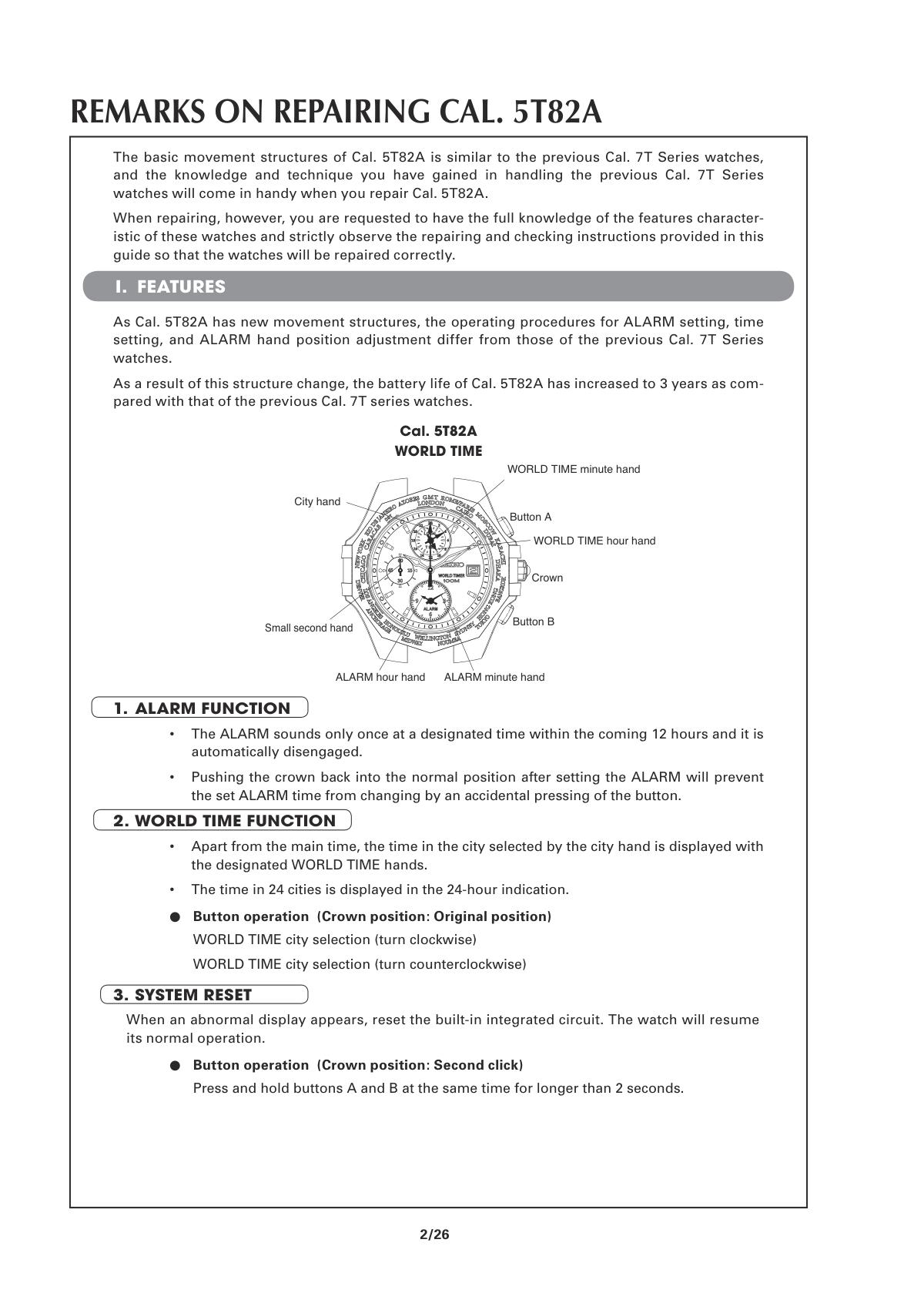

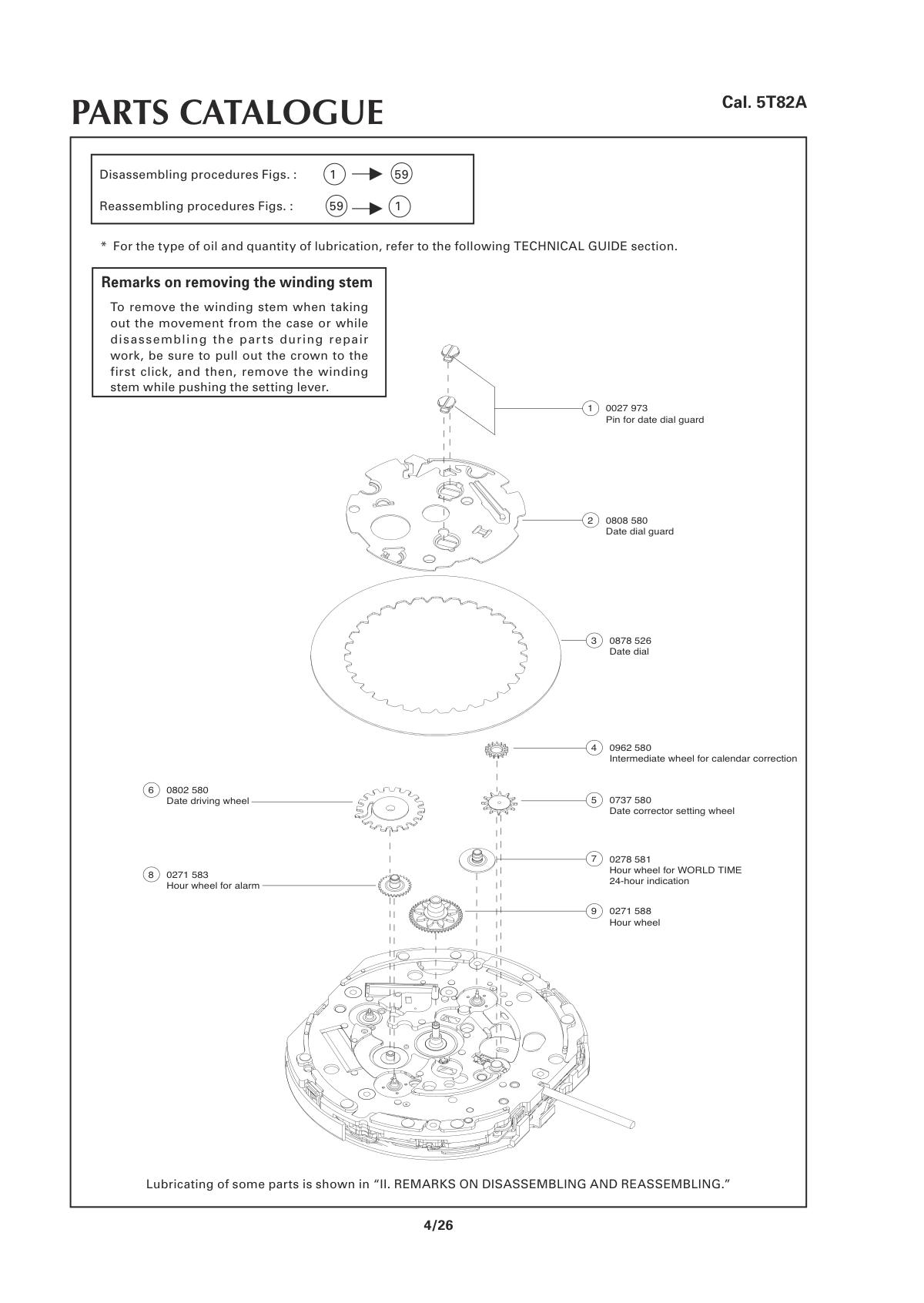

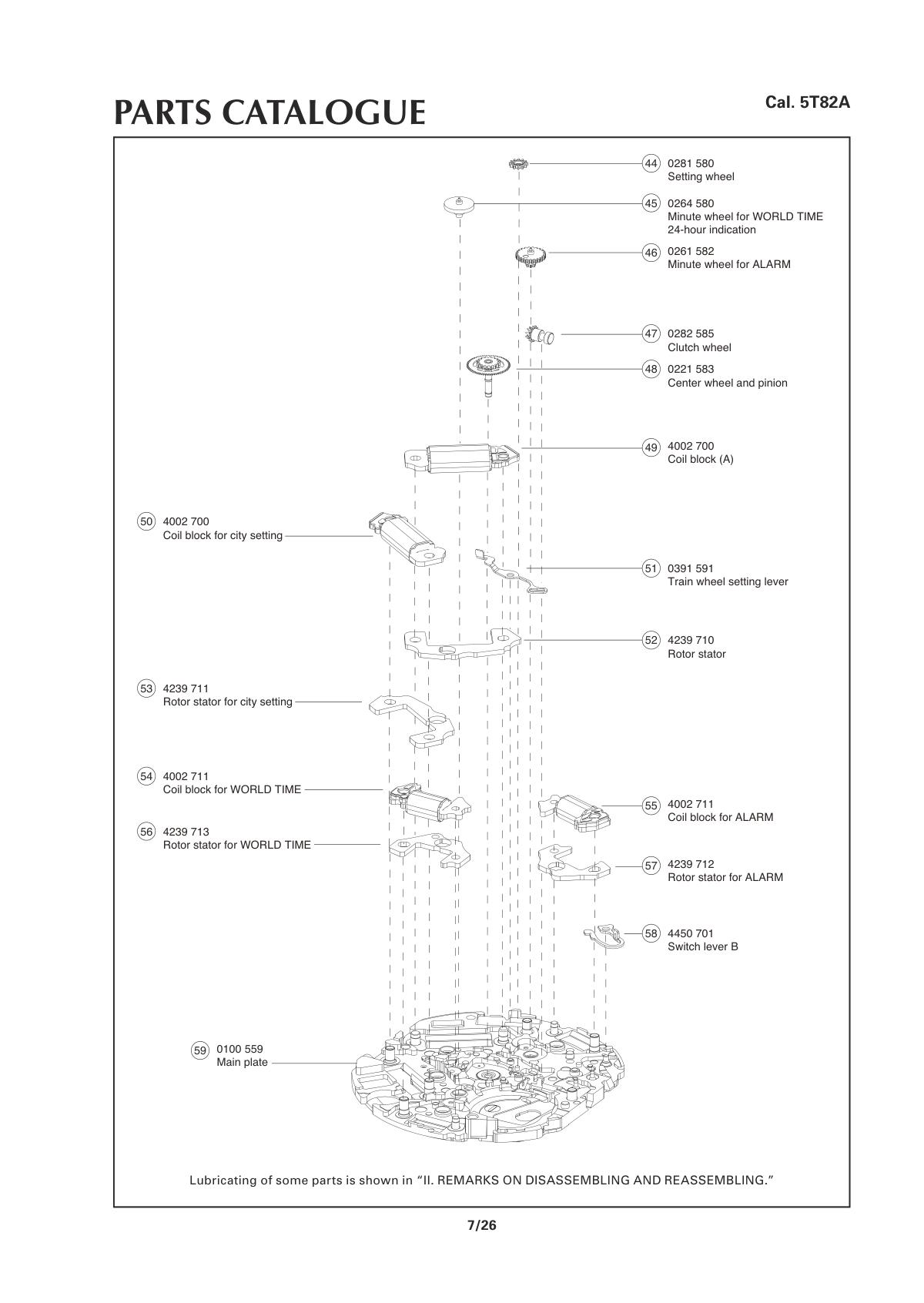

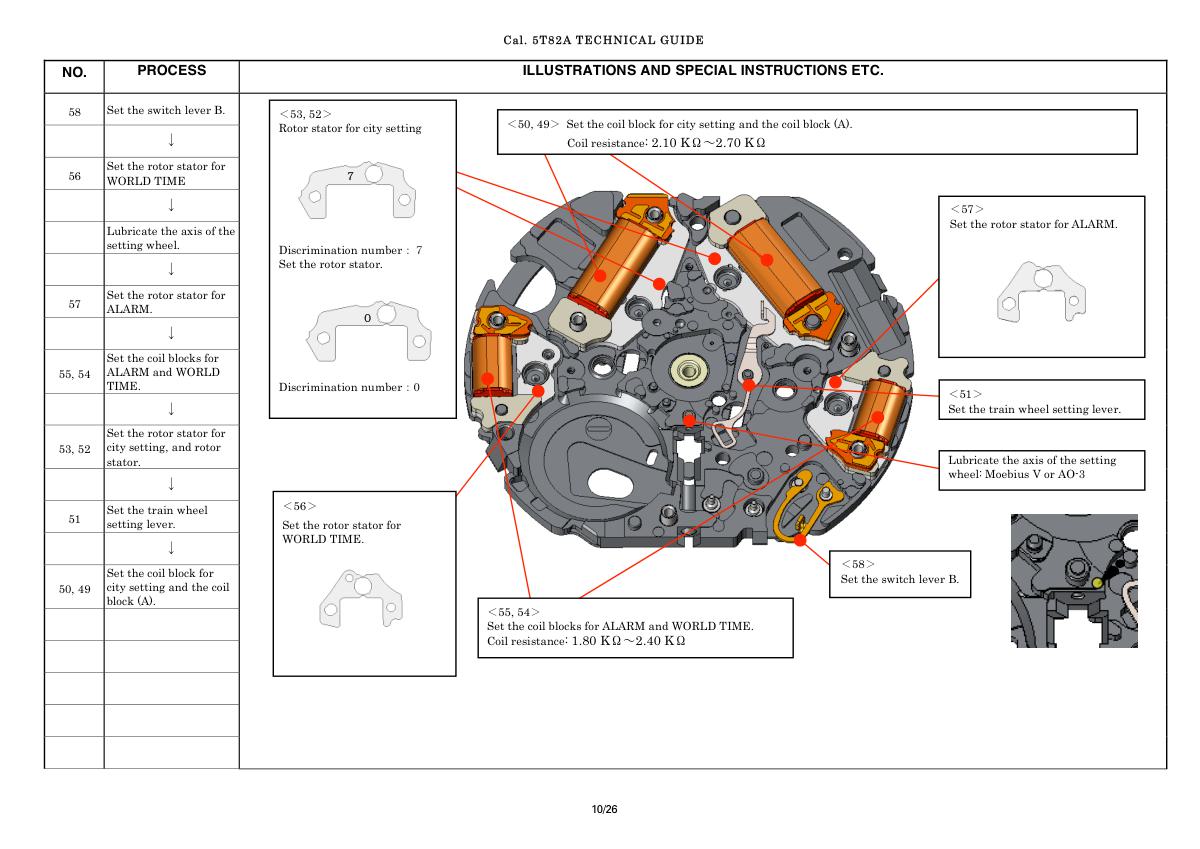

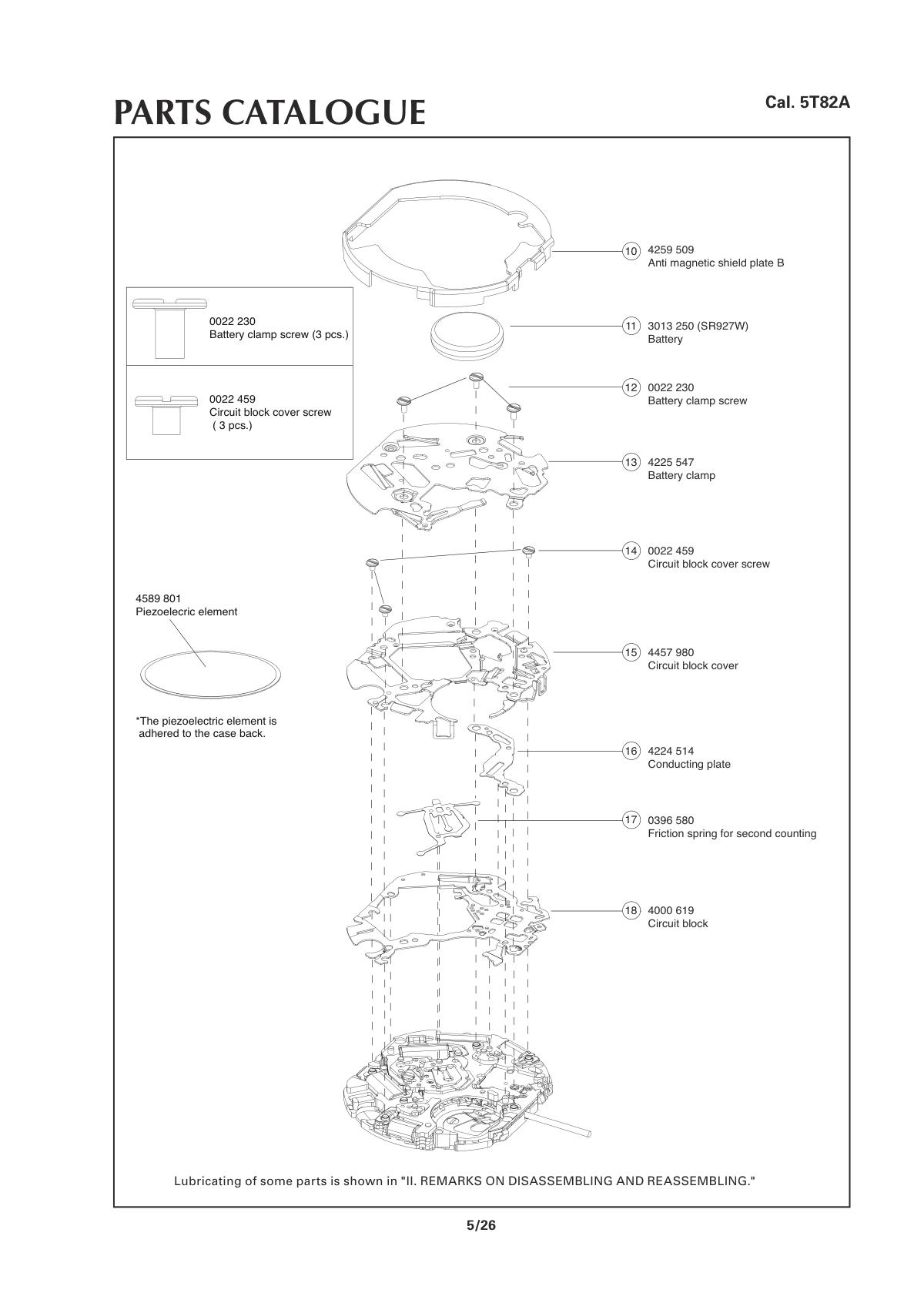

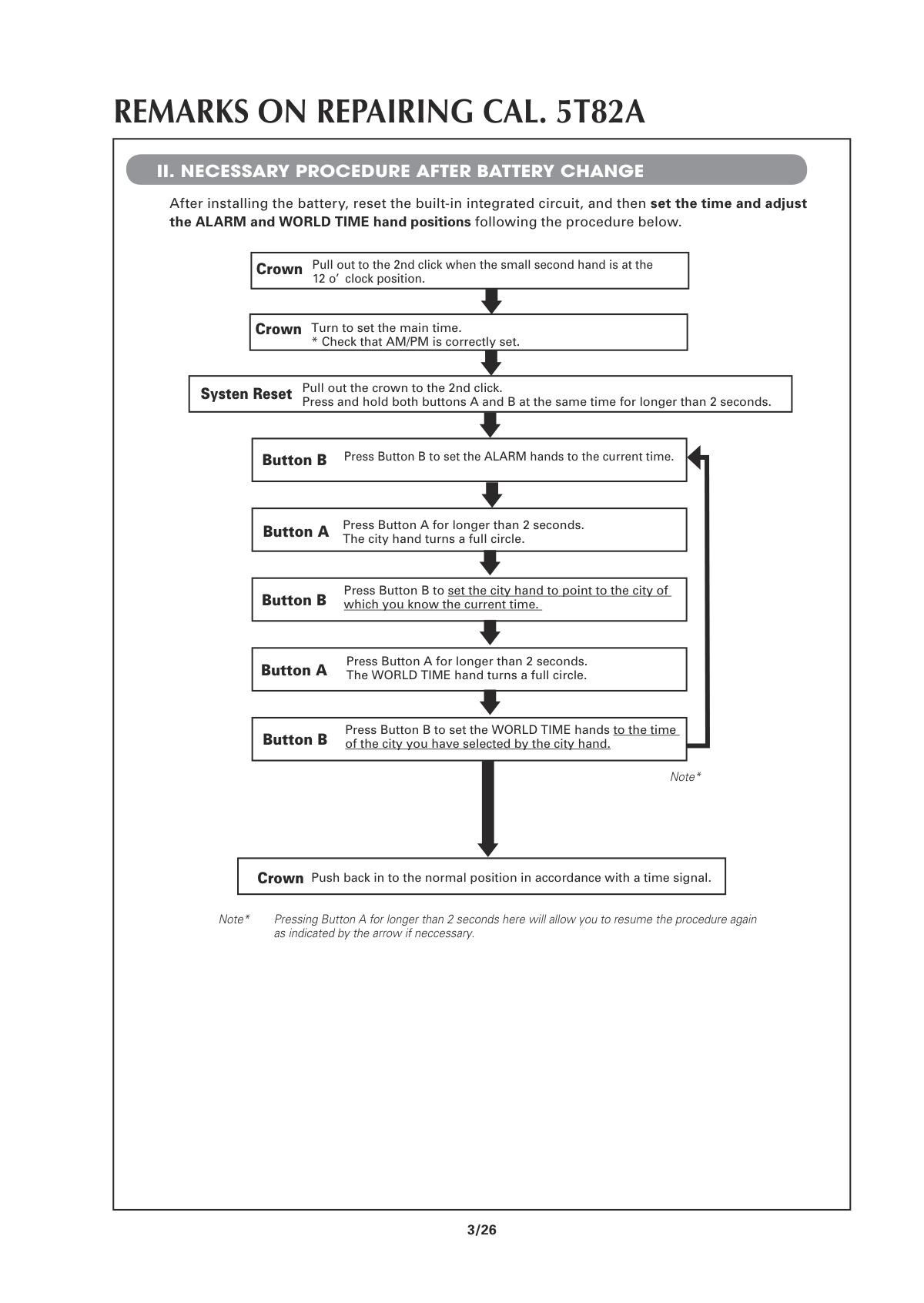

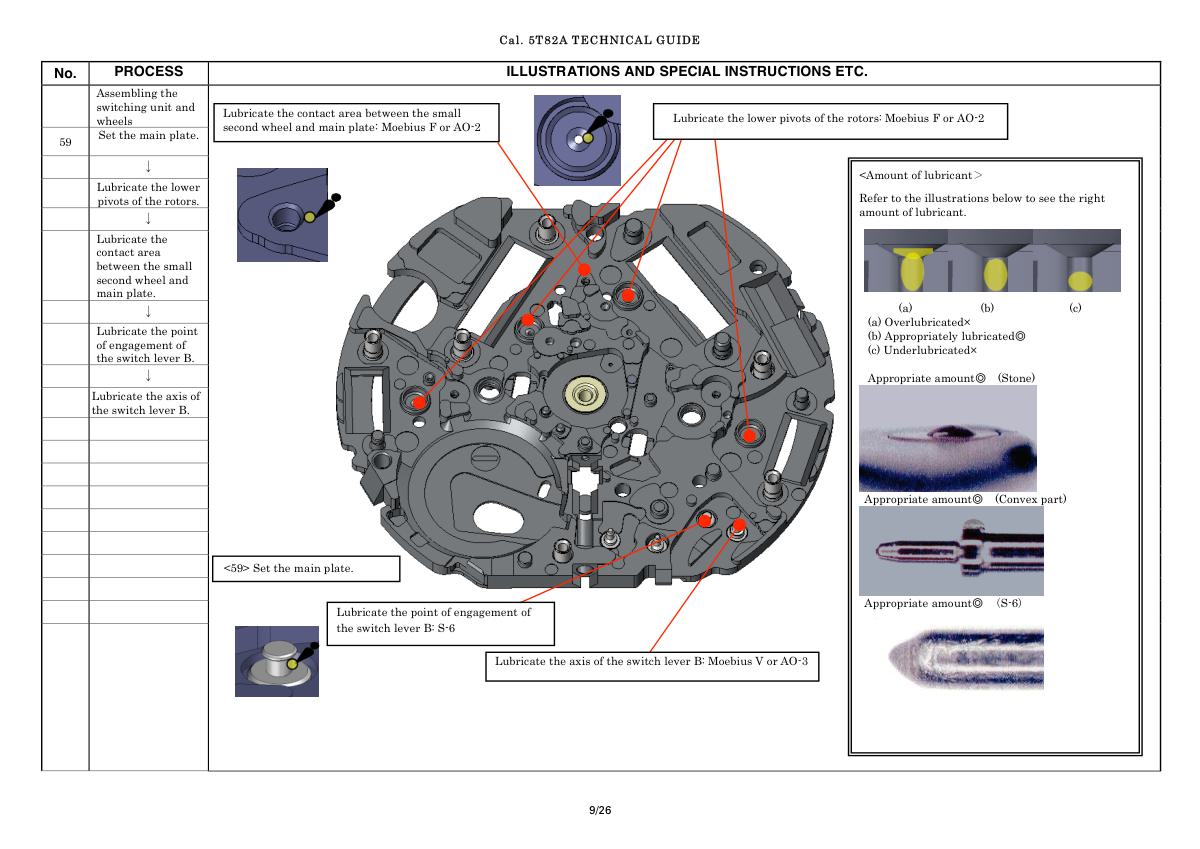

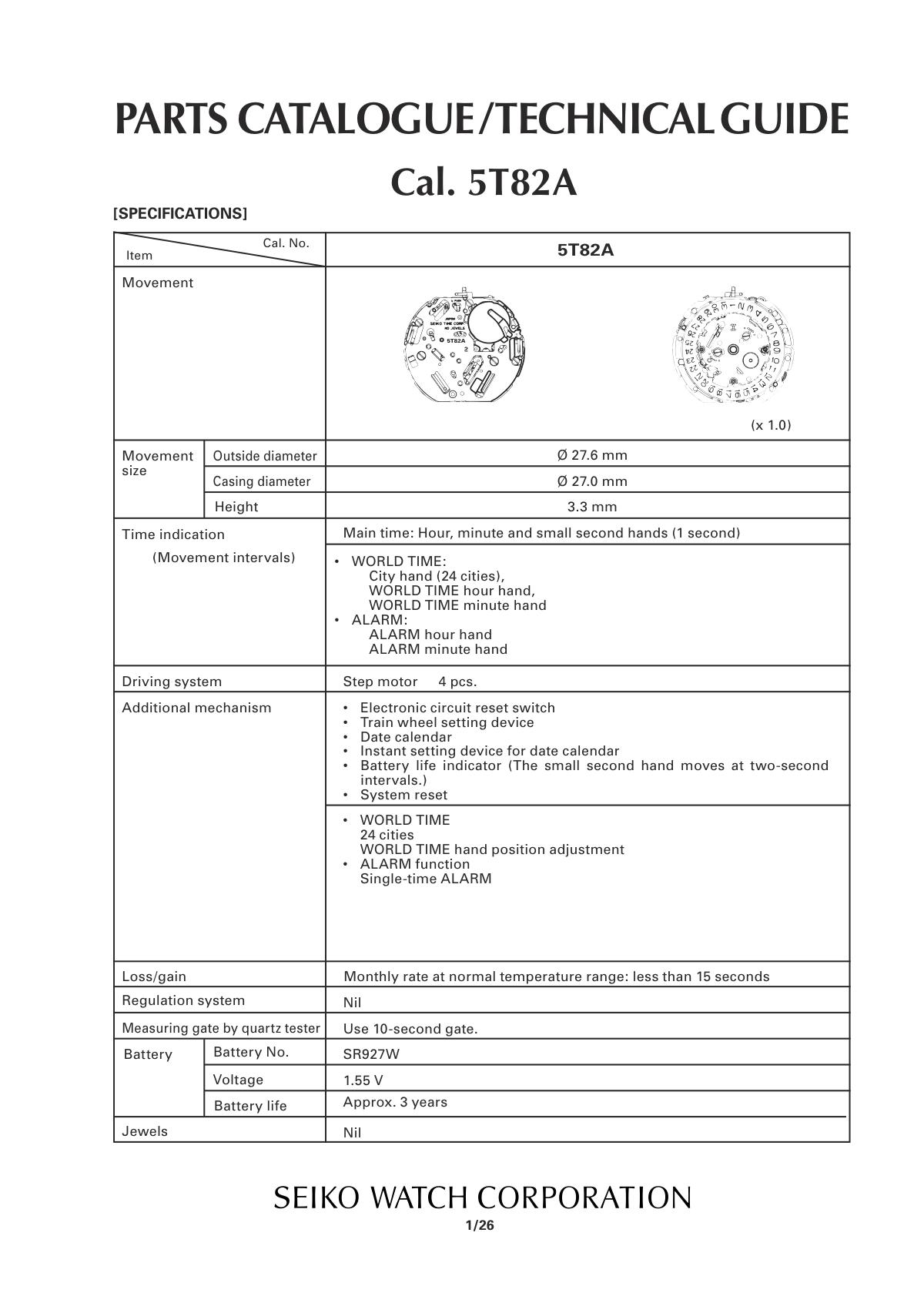

Caliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual page
