The Seiko 5J32-0AE0 is a watch model based on the 5J32 movement.
Parts List
290P94SN03 | crystal - crystal |
8K40D4SNW1 | crown - crown |
FE298BAD2 | case back gasket - case back gasket |
86565321 | crystal gasket - plastic gasket for crystal |
86565320 | crystal gasket - plastic gasket for crystal |
32A2JZ | band - band |
32A2JZ-LK | band - link |
32A2JZ-PB | clasp - parts for buckle |
32A2JZ-BK | clasp - buckle |
1AX080FXBEL | others - hour hand |
1AX080FXBES | others - hour hand |
2BX115FMBEL | others - minute hand |
2BX115FMBES | others - minute hand |
3AX130F0AEP | others - second hand |
3AX130F0AET | others - second hand |
AD006BAD1 | others - crown and stem gasket |
0351557 | others - winding stem |
5J320AE001D | others - case |
82843700 | others - case ring |
5J320AE0 | others - case back |
5J320AE002D | others - case |
5J320AE003D | others - case |
0878942 | others - date dial |
0878943 | others - date dial |
5J320AD8XL13 | others - dial |
5J320AG8XB13 | others - dial |
5J320AG8XS13 | others - dial |
5J324 | others - machine code |
81505949 | others - screw |
84333684 | others - dial ring |
84333685 | others - dial ring |
84333686 | others - dial ring |
S180BS | others - push pin |
Caliber 5J32

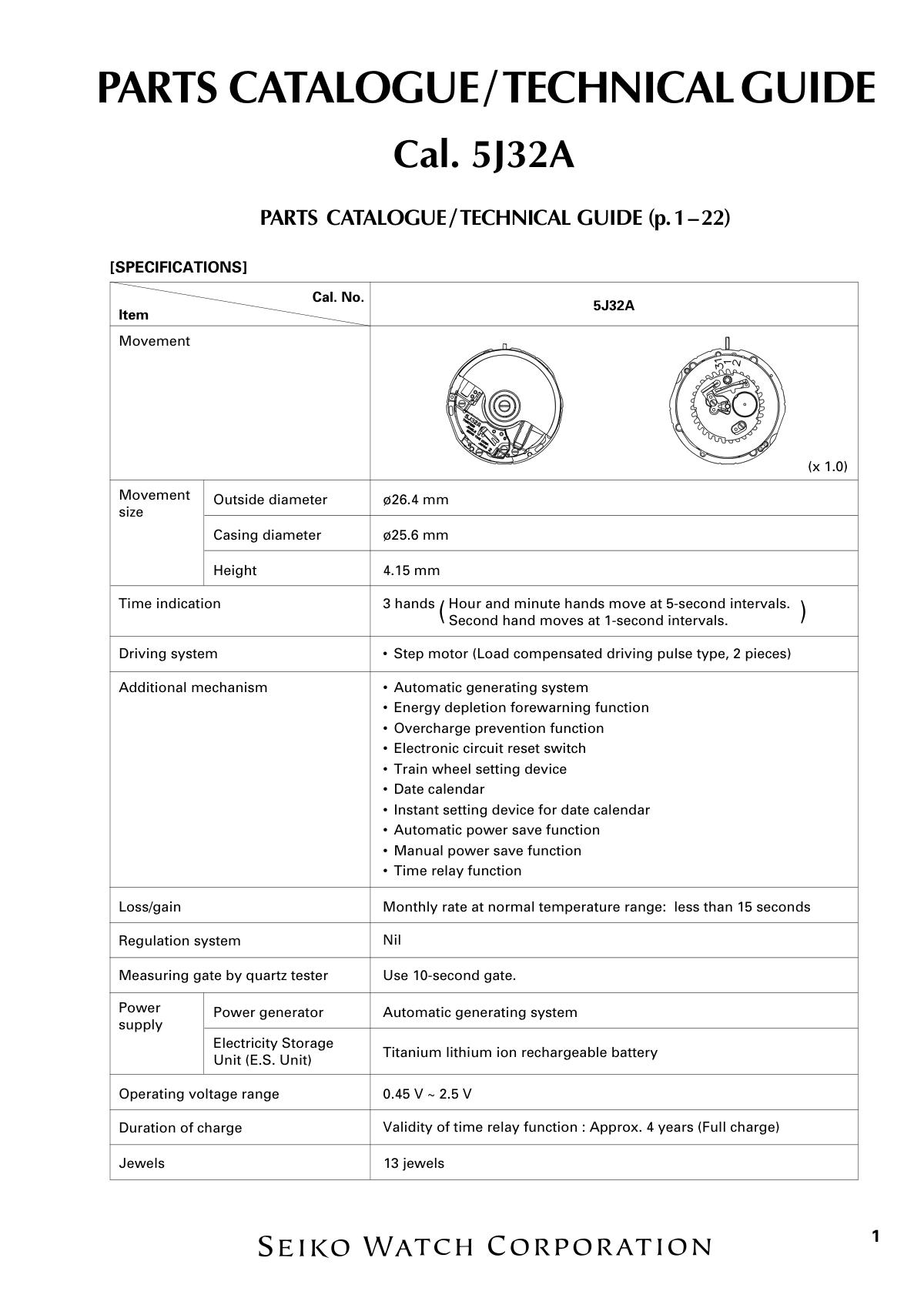

![Caliber manual page](https://www.theseikoguy.com/media/movements/5/5J32A_caliber_en_1.jpg)

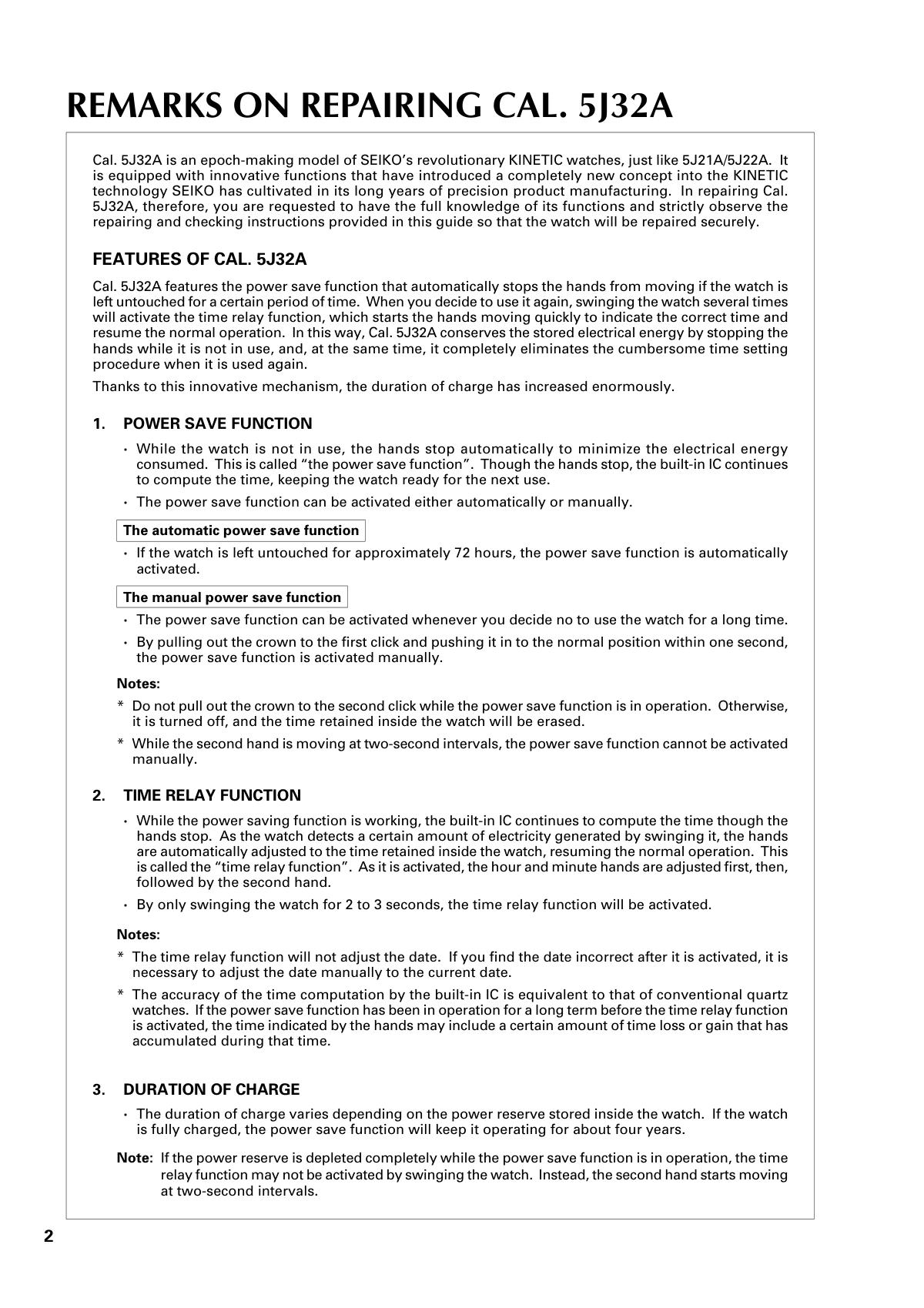

![Caliber manual page](https://www.theseikoguy.com/media/movements/5/5J32A_caliber_en_2.jpg)
![Caliber manual page](https://www.theseikoguy.com/media/movements/5/5J32A_caliber_en_3.jpg)

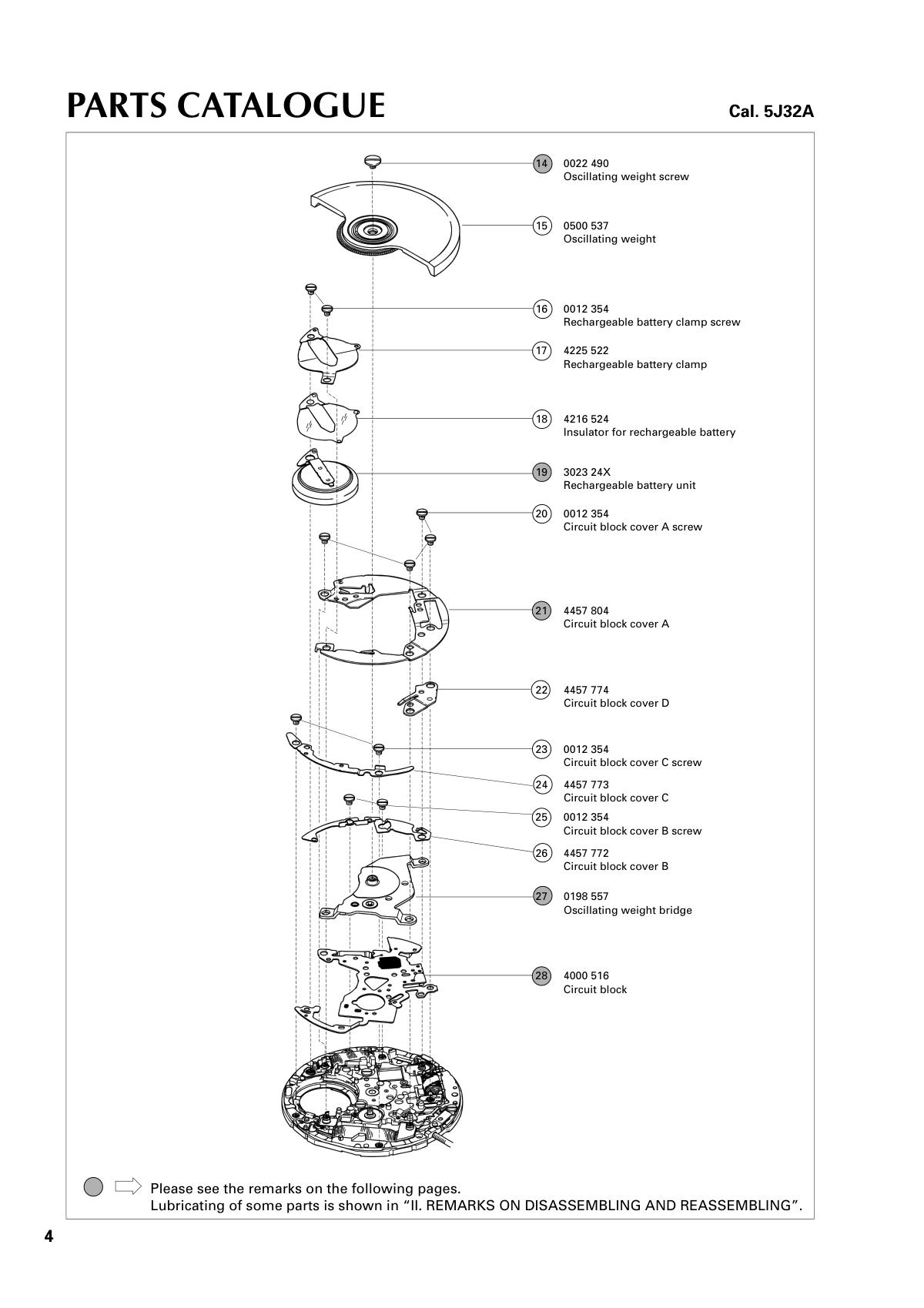

![Caliber manual page](https://www.theseikoguy.com/media/movements/5/5J32A_caliber_en_4.jpg)

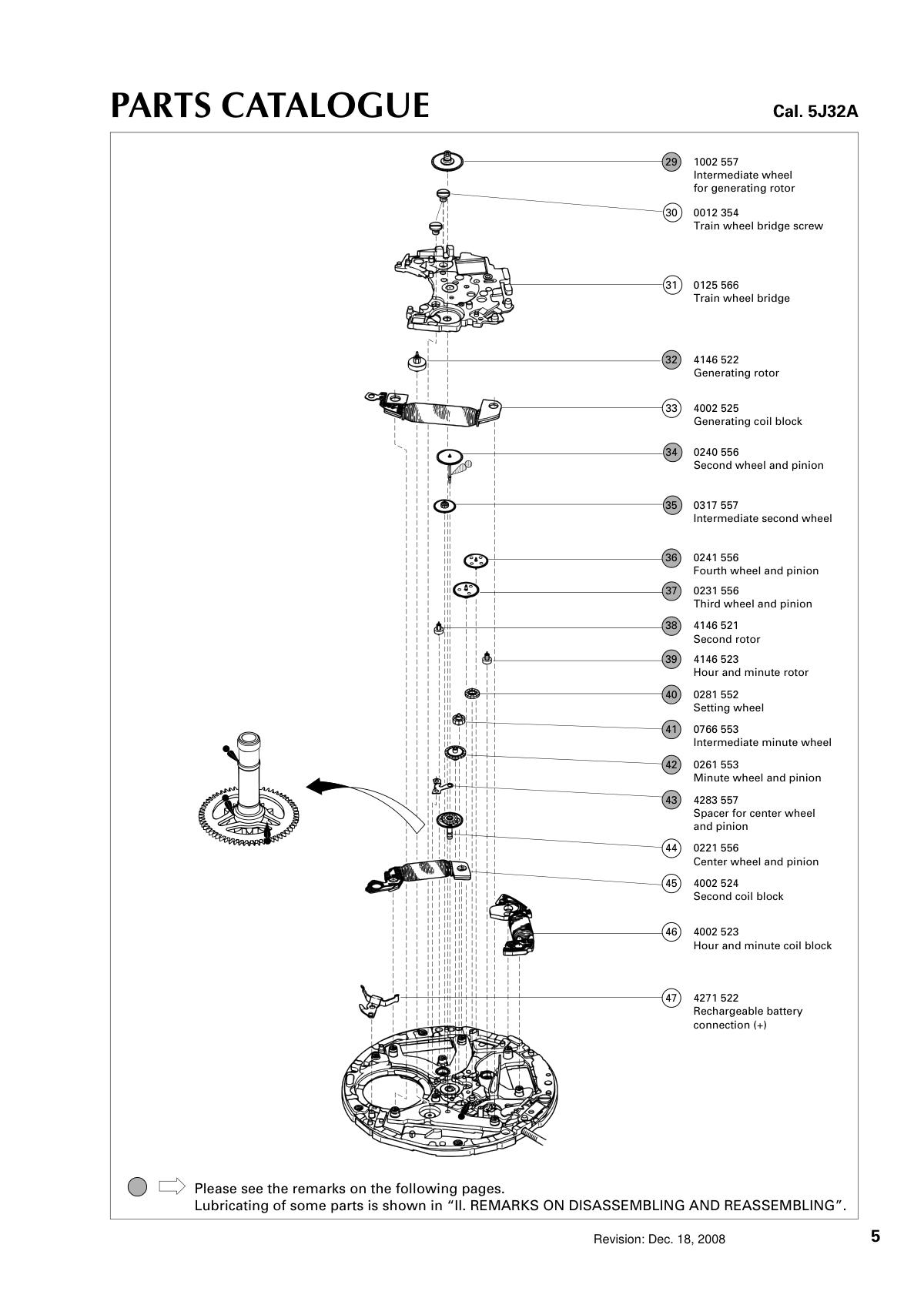

![Caliber manual page](https://www.theseikoguy.com/media/movements/5/5J32A_caliber_en_5.jpg)

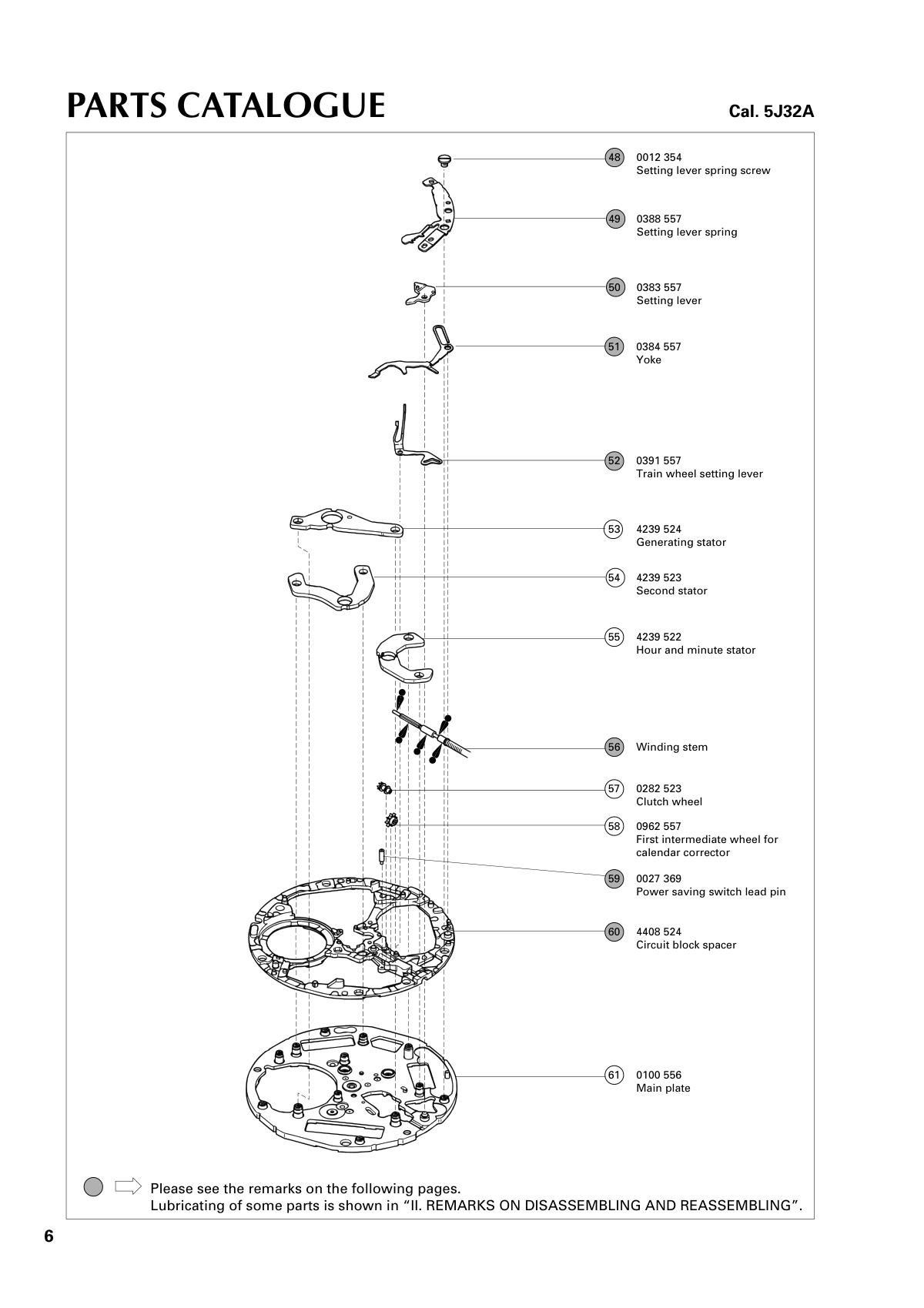

![Caliber manual page](https://www.theseikoguy.com/media/movements/5/5J32A_caliber_en_6.jpg)

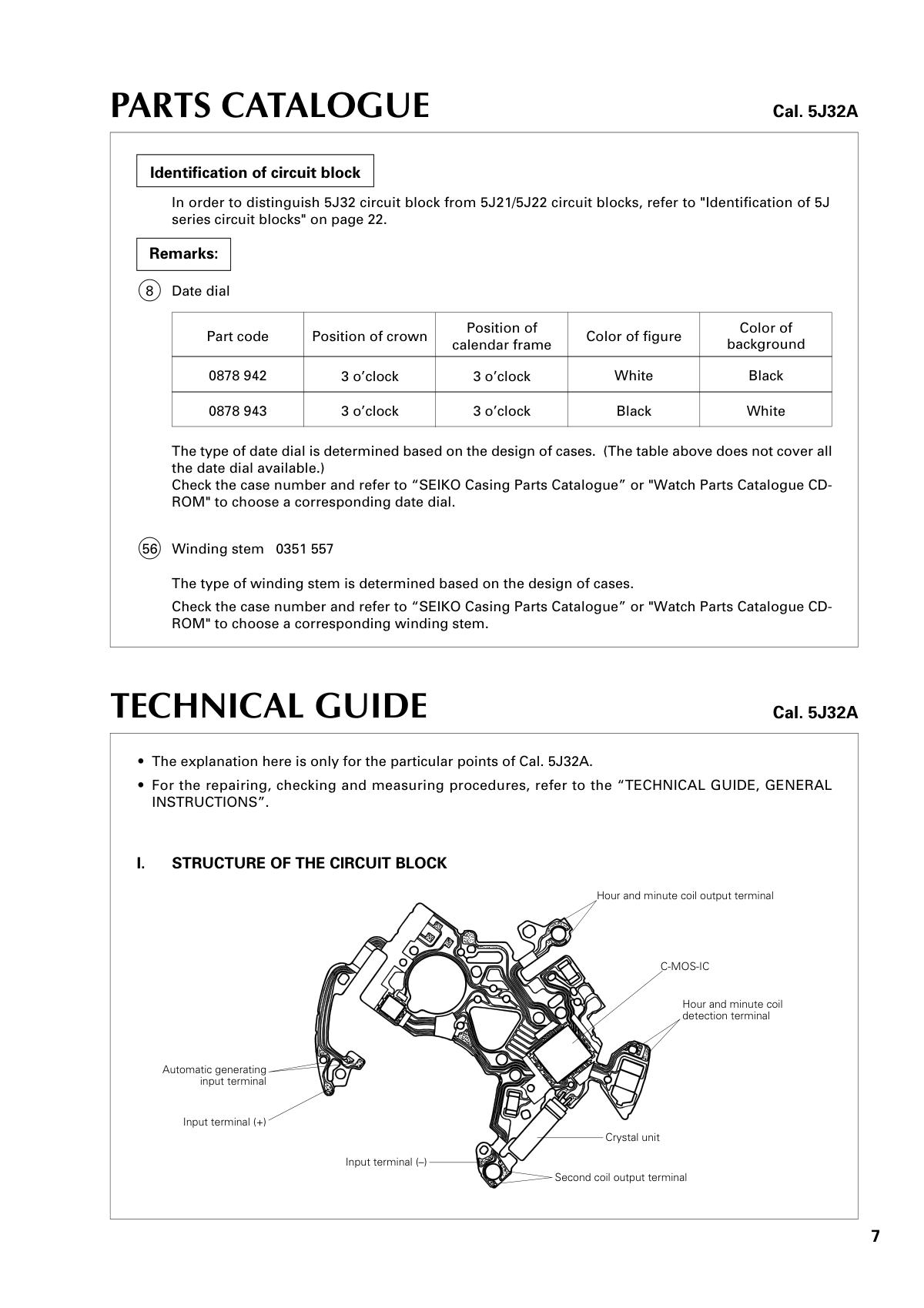

![Caliber manual page](https://www.theseikoguy.com/media/movements/5/5J32A_caliber_en_7.jpg)

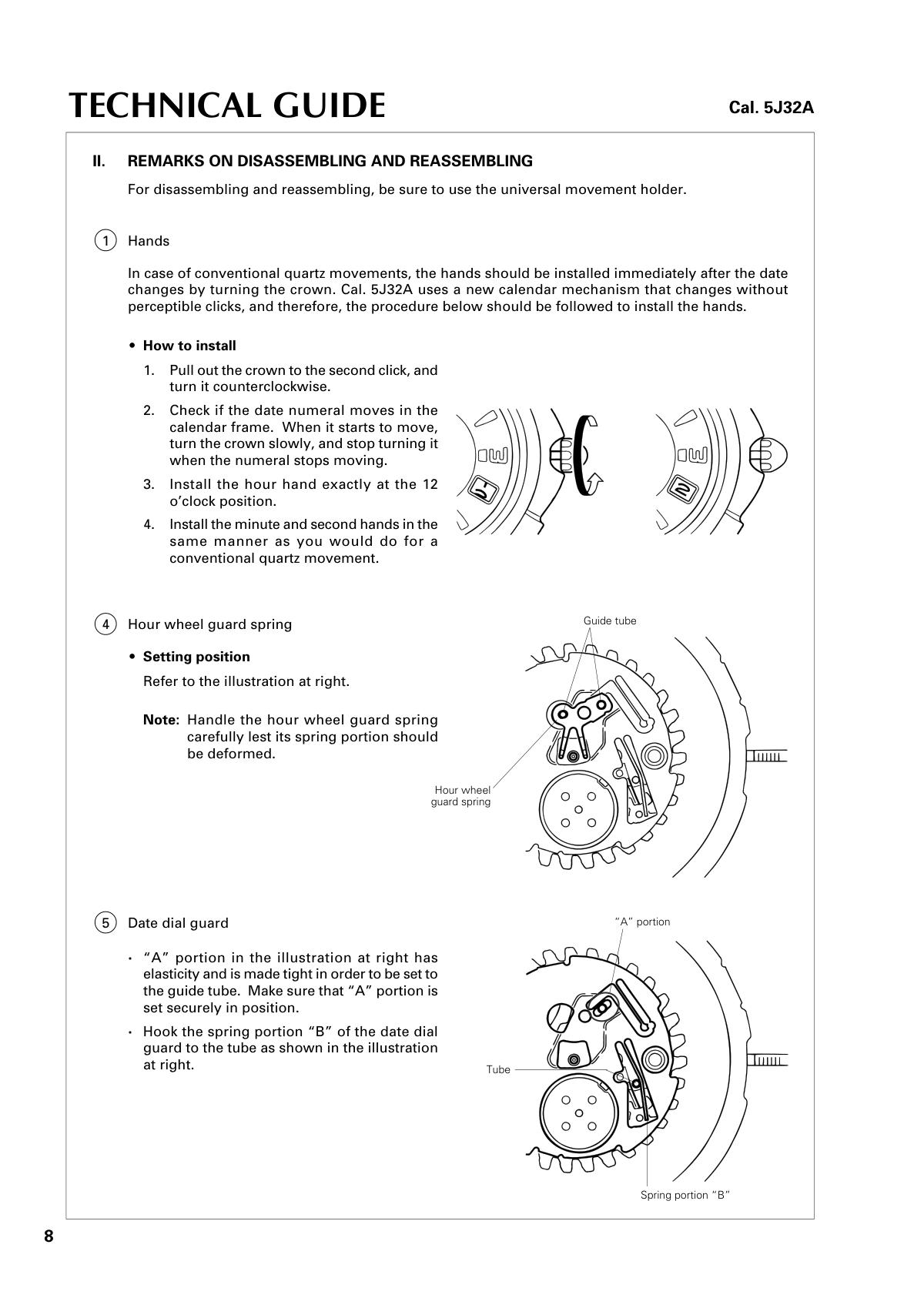

![Caliber manual page](https://www.theseikoguy.com/media/movements/5/5J32A_caliber_en_8.jpg)

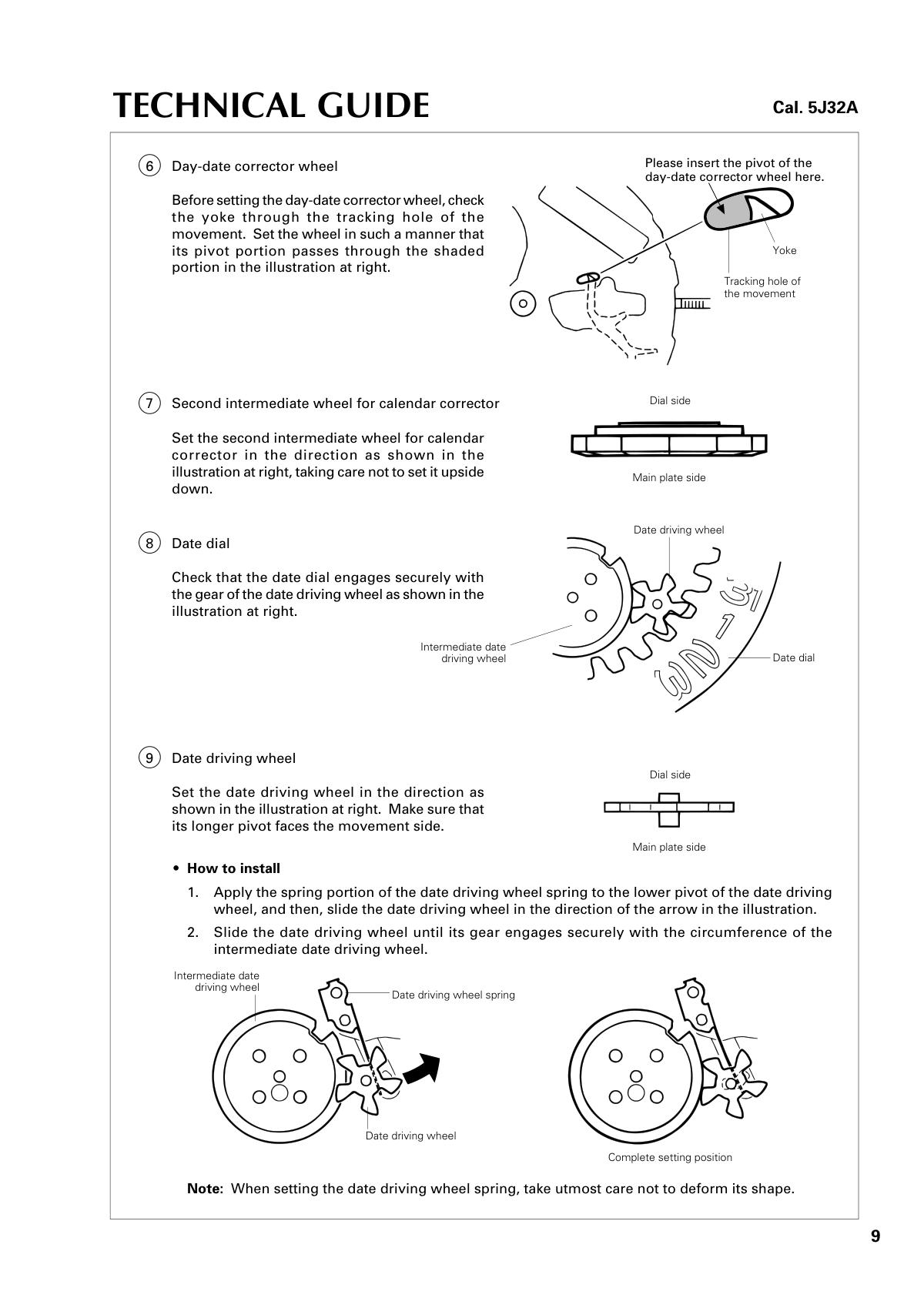

![Caliber manual page](https://www.theseikoguy.com/media/movements/5/5J32A_caliber_en_9.jpg)

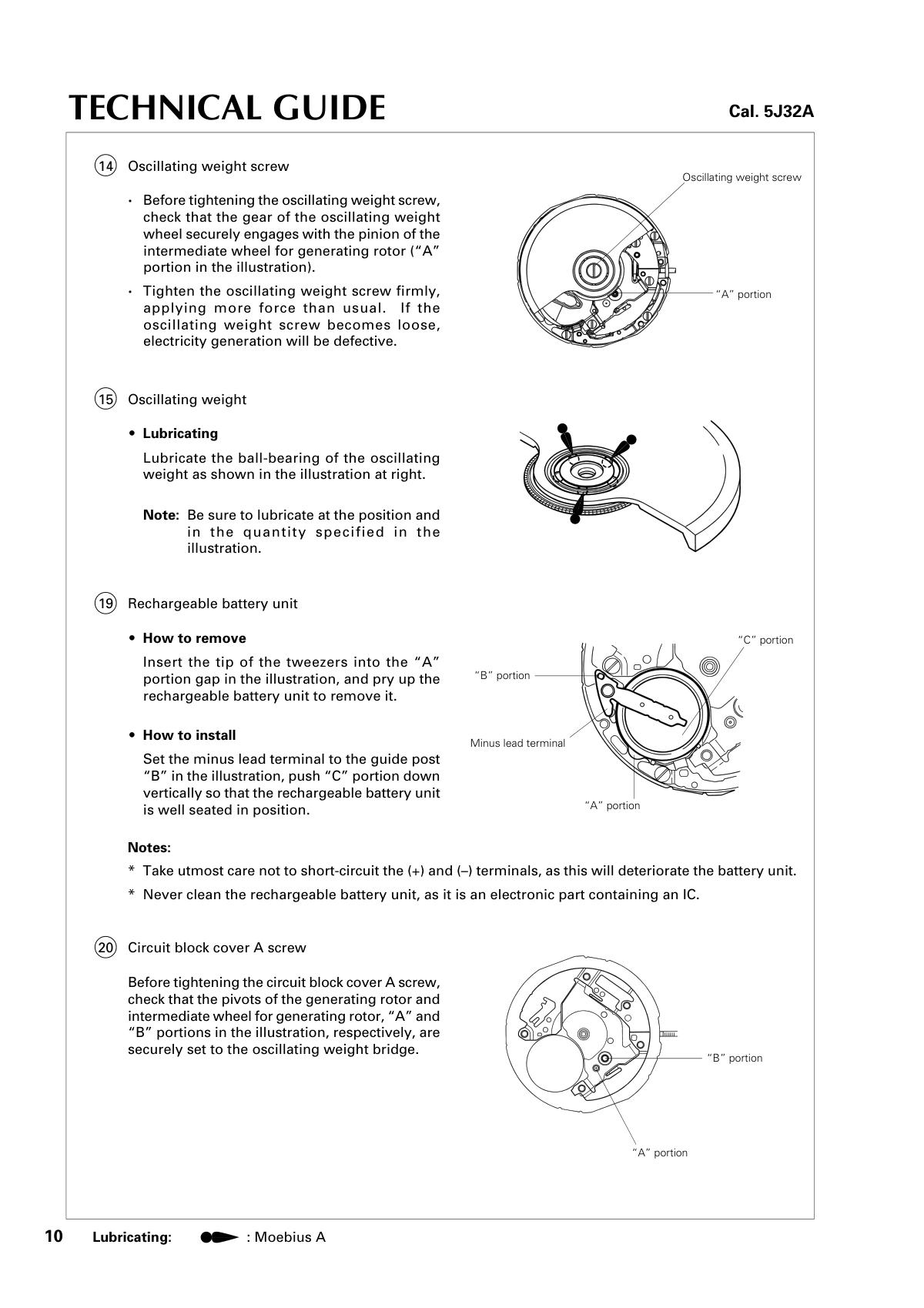

![Caliber manual page](https://www.theseikoguy.com/media/movements/5/5J32A_caliber_en_10.jpg)
