Seiko 4K26-0029 Watch Guide

The Seiko 4K26-0029 is a watch model based on the 4K26 movement.

Parts List

180W47SN01crystal
180W47SNcrystal
30MD8NA1crown
0F160BAA5case back gasket - case back gasket
0F160BAAcase back gasket
86566710crystal gasket
B5513Gband
B5513G-LKGband - link
B5513G-PB1clasp - parts for buckle/clasp
B5513G-BK7Gclasp - clasp
04B07VAHhand - sub hand
4K260029others - case back
4K26002975others - case
4K260030XS14others - dial
82820510others - case ring
EZ0035B0Aothers - crown and stem gasket
0351546others - winding stem
81182699others - bracelet fixing pipe
81609399others - bracelet fixing pin
81609619others - bracelet fixing pin
08SC55VGothers - second hand
07T61JGMothers - minute hand
07T61VJHothers - hour hand

Caliber 4K26

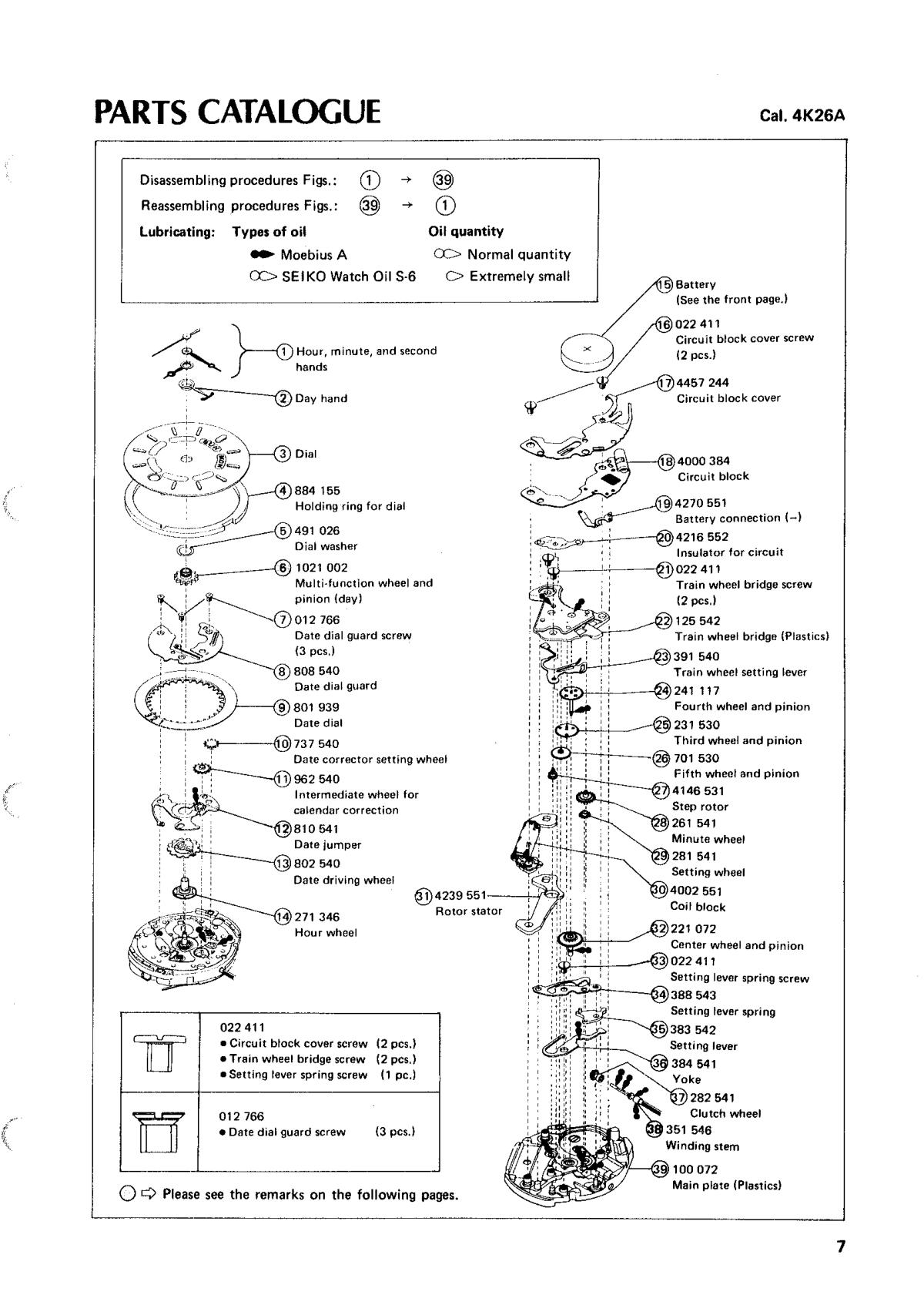

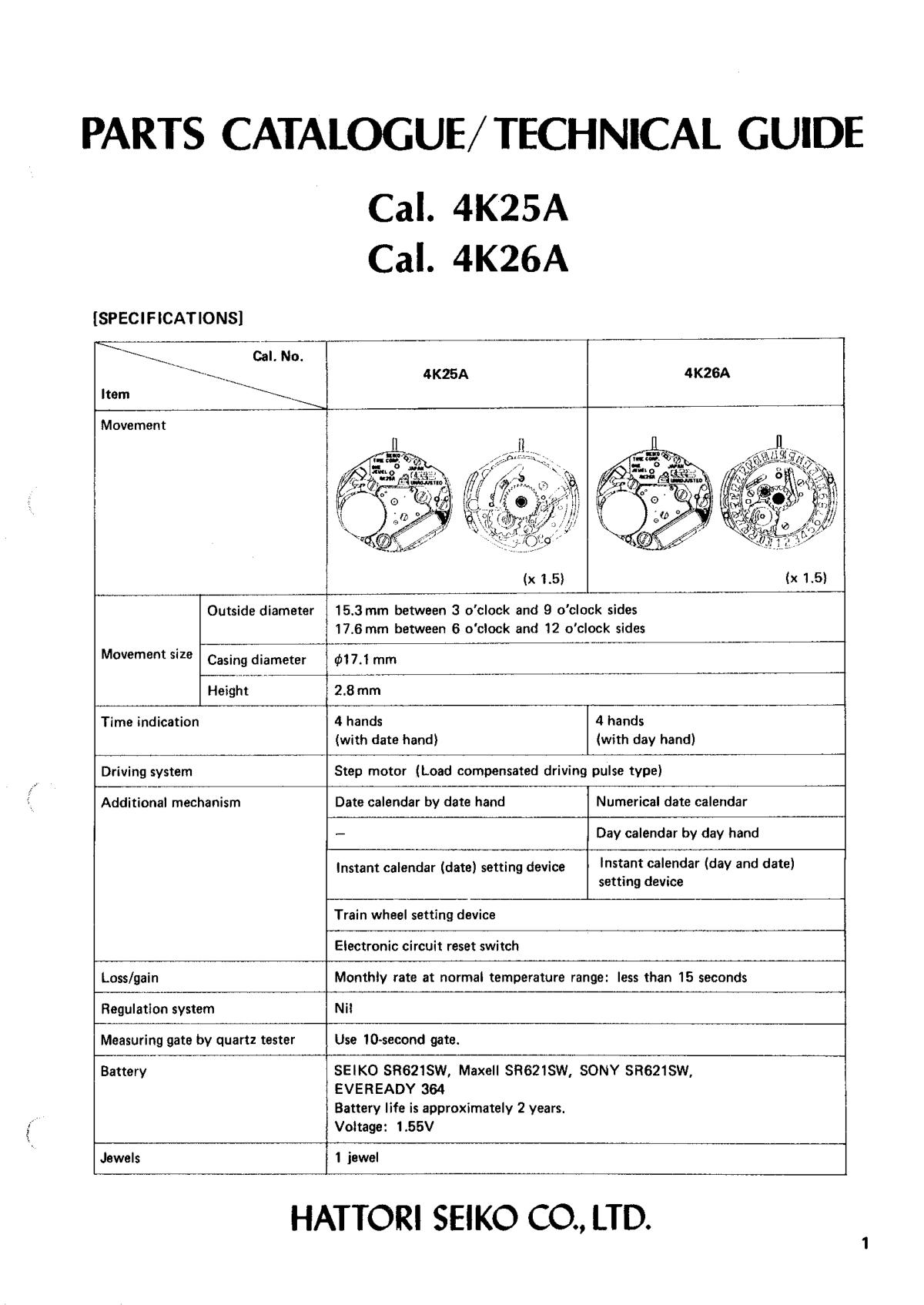

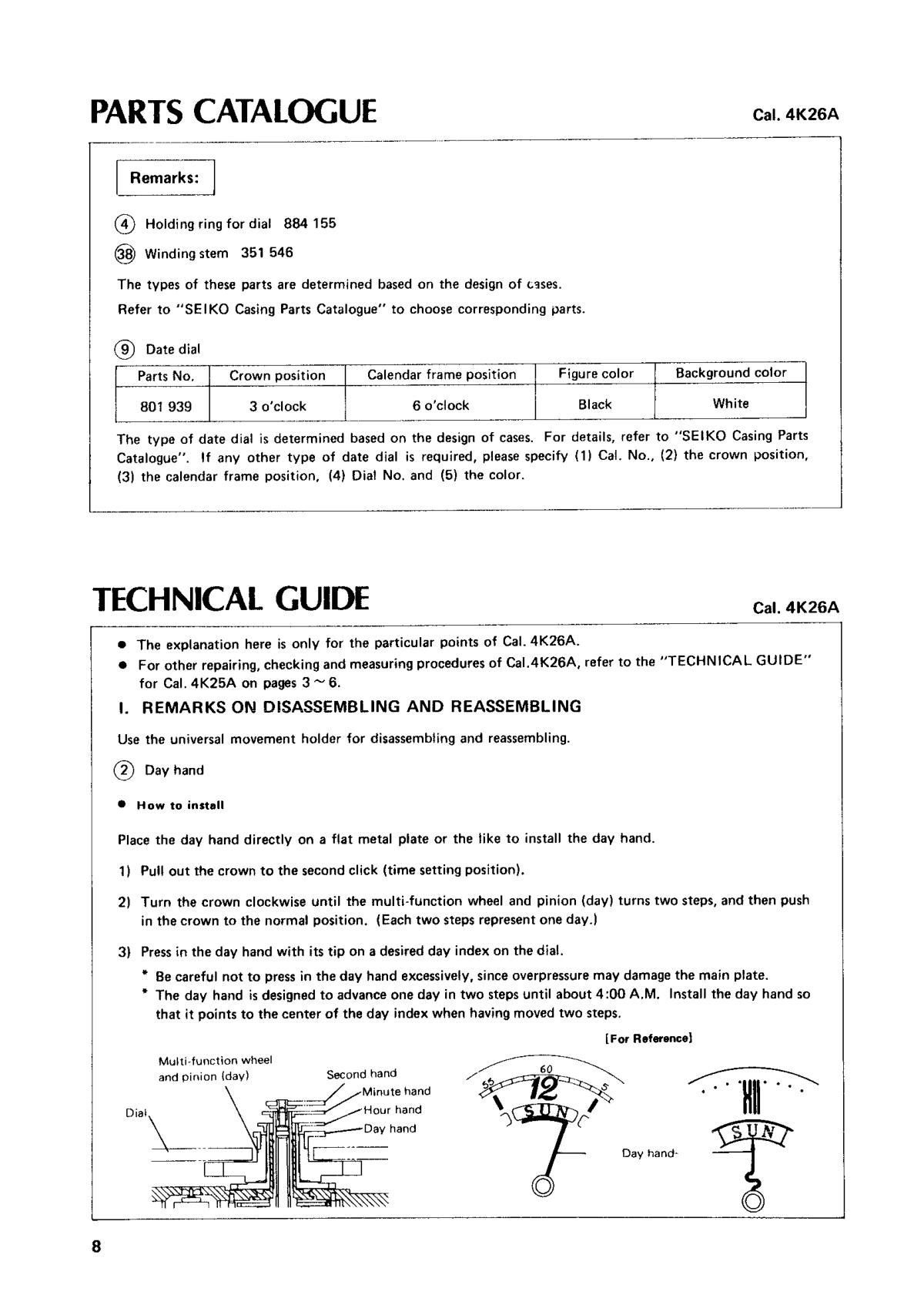

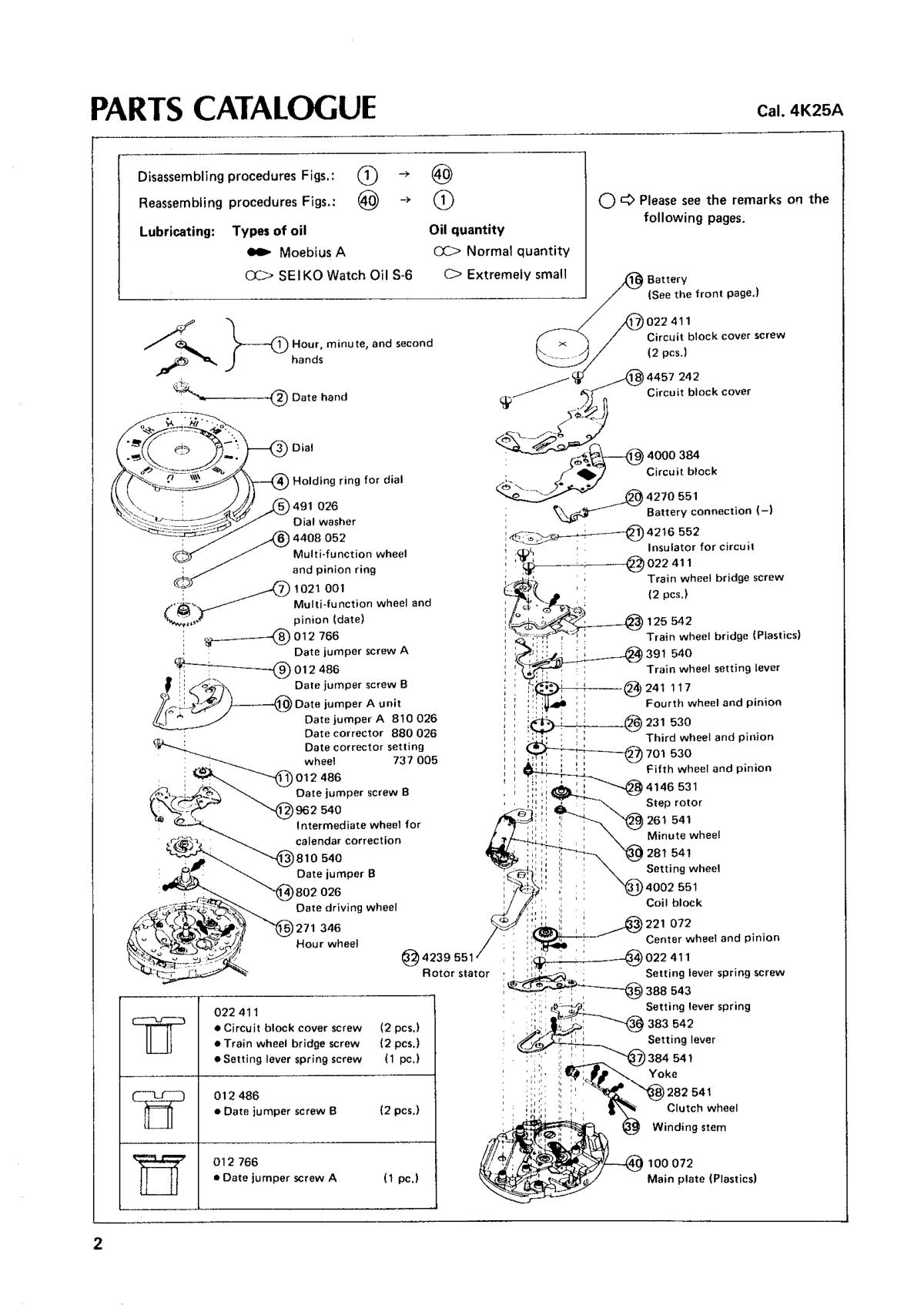

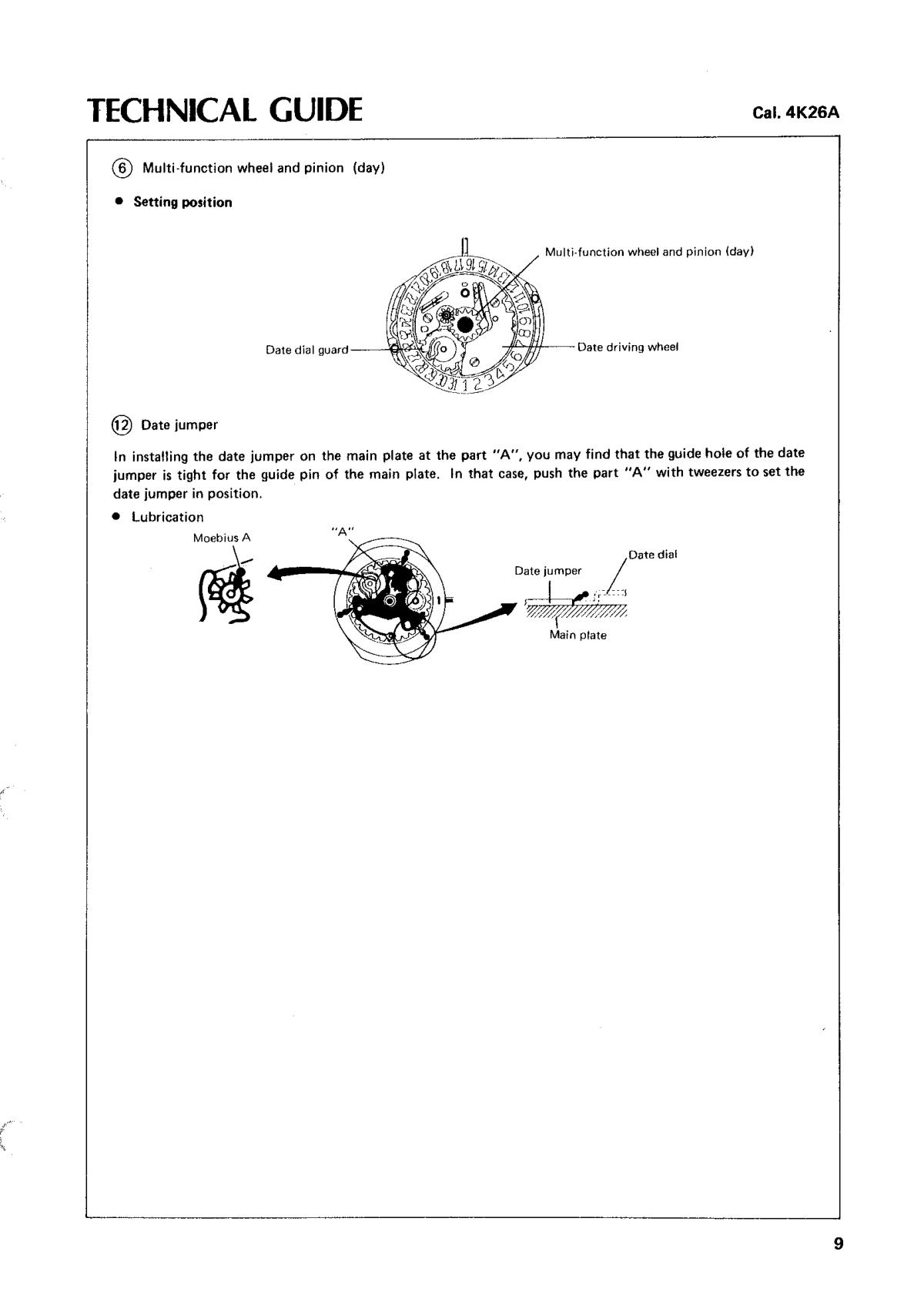

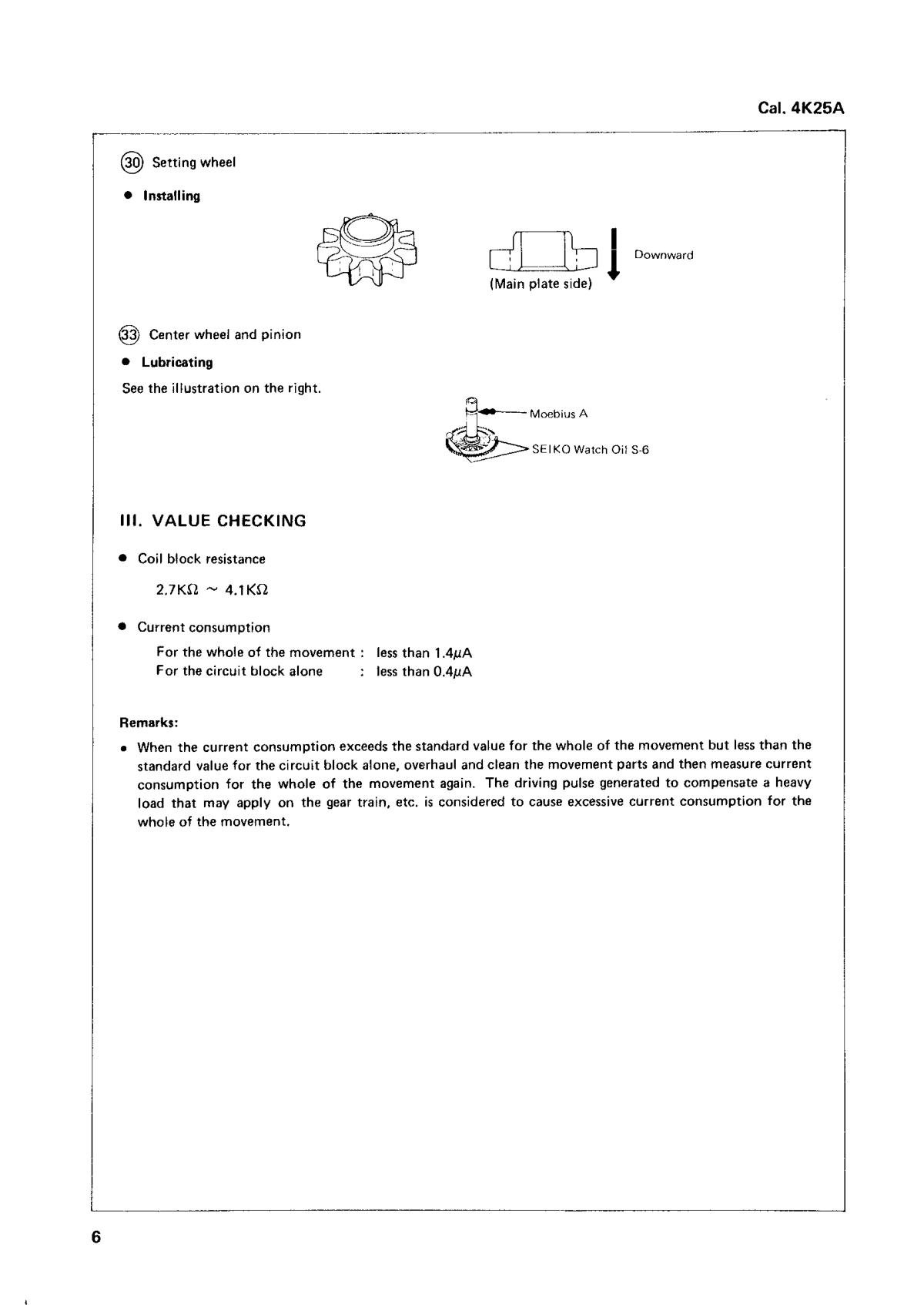

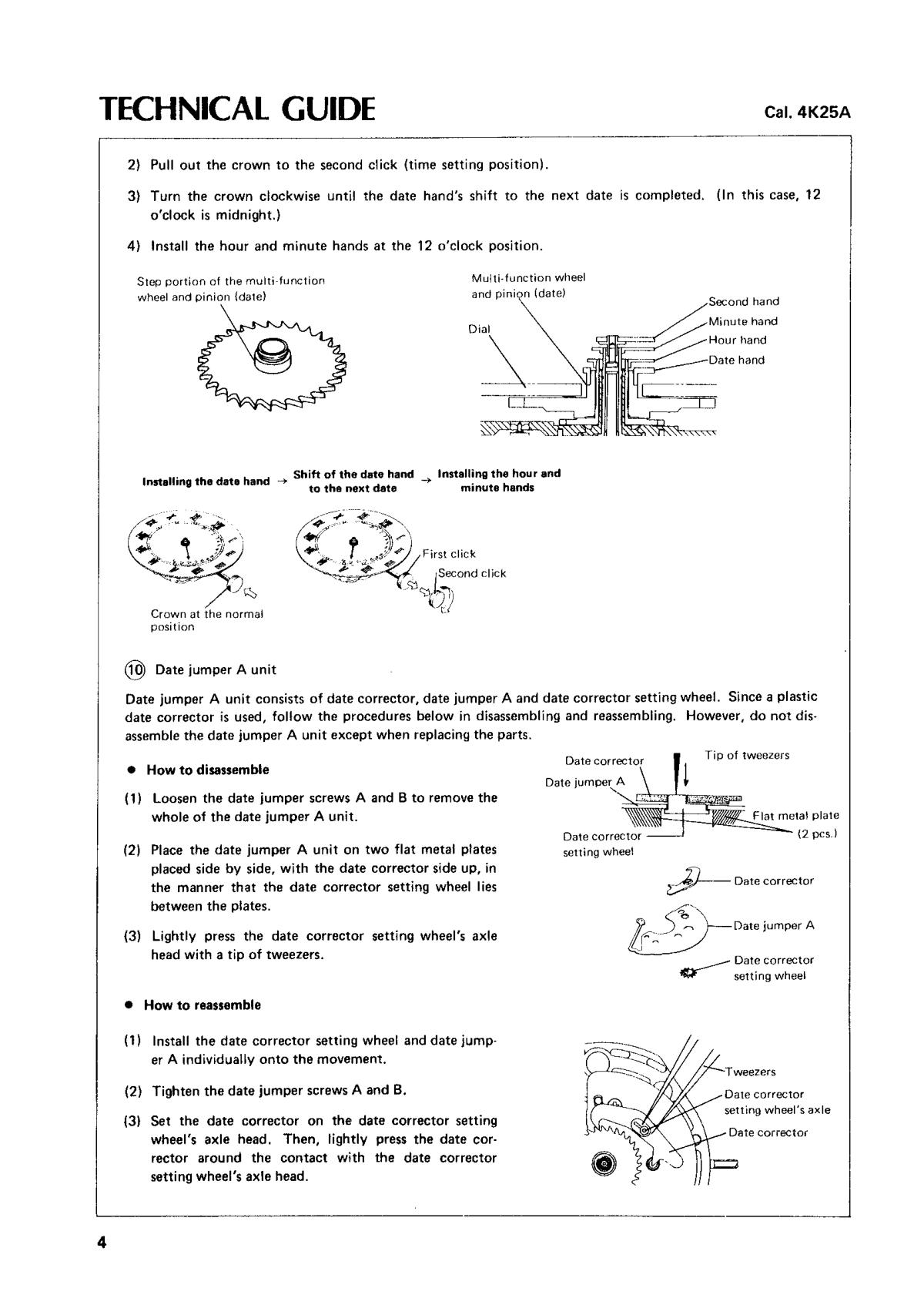

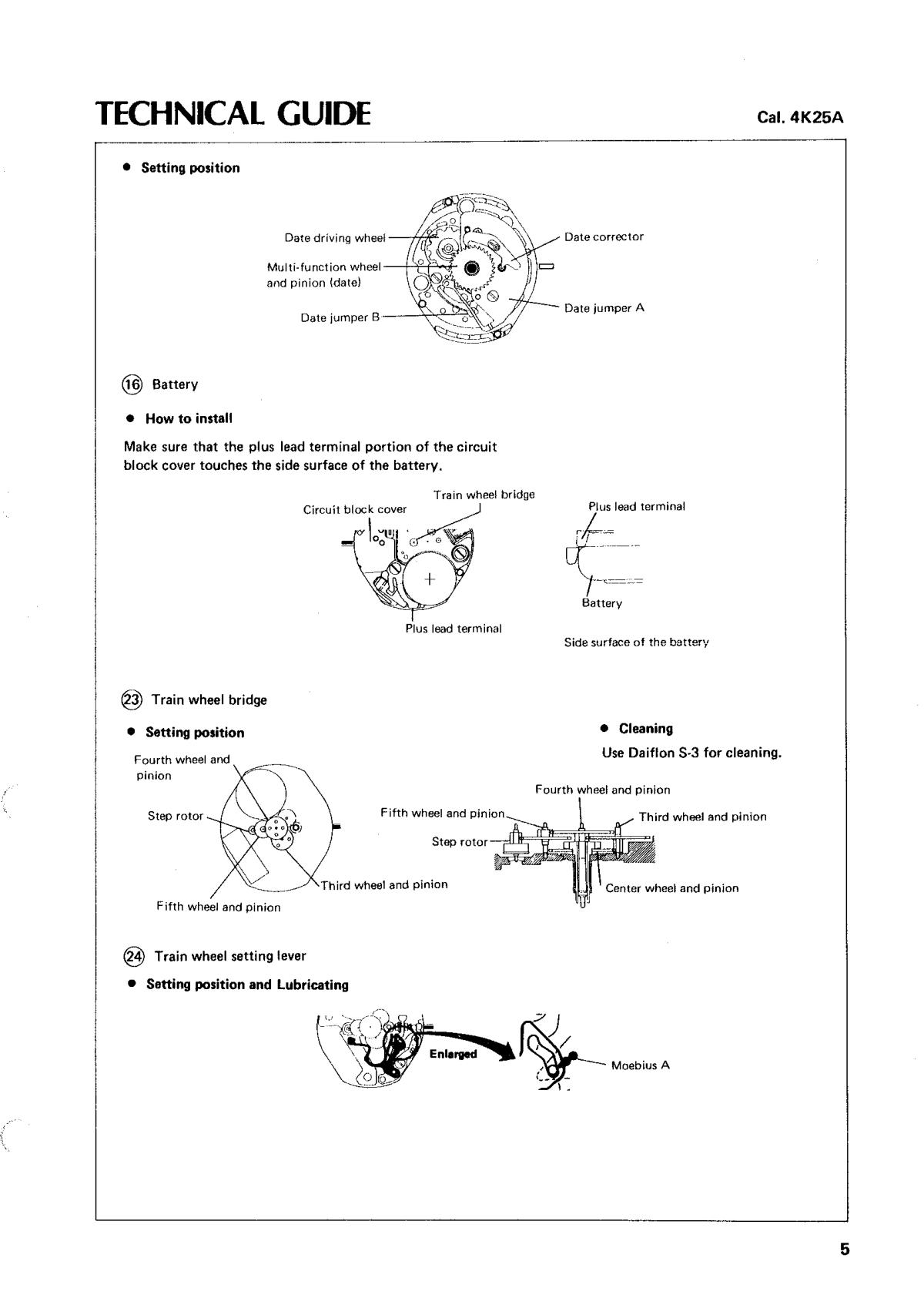

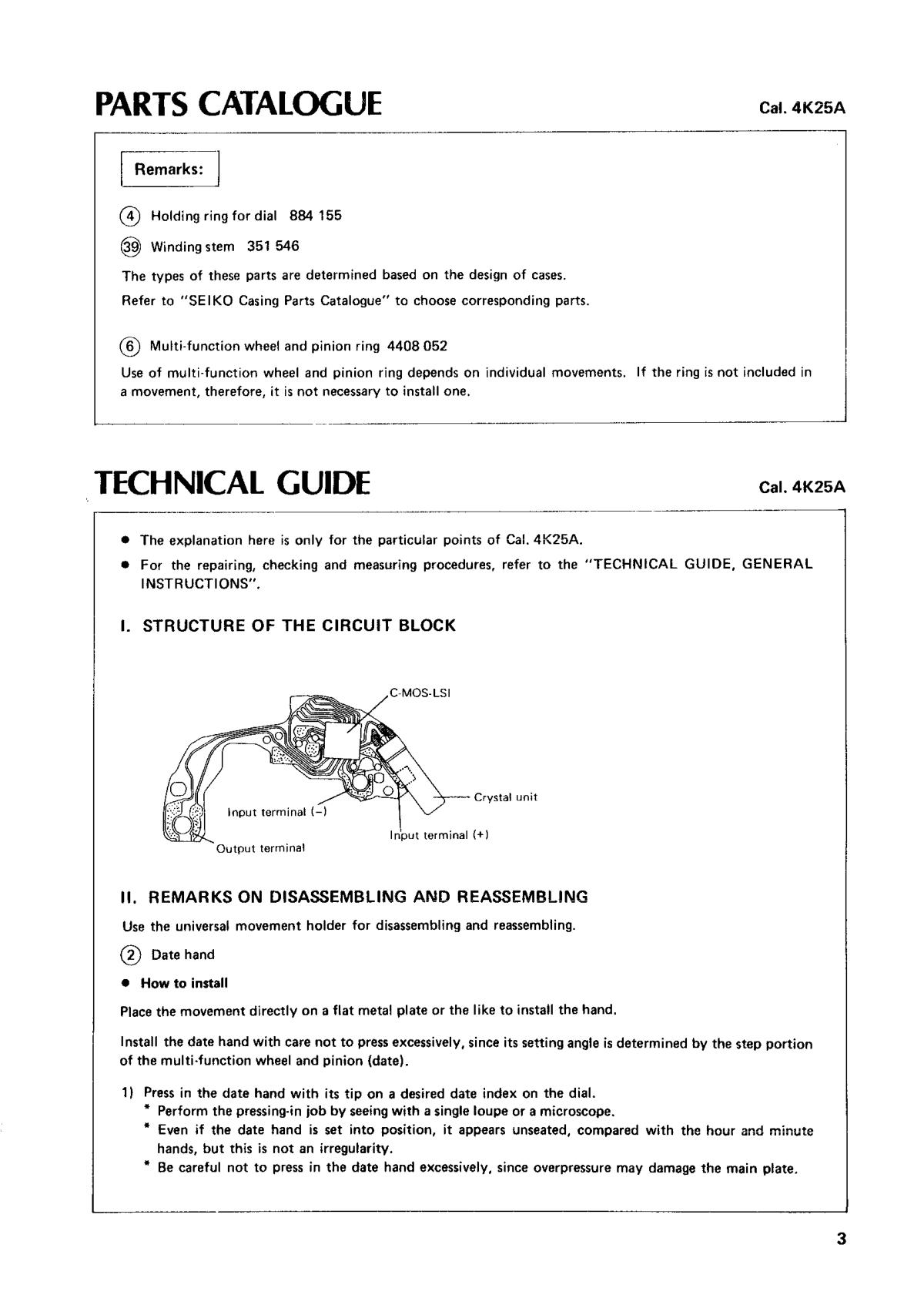

Caliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual pageCaliber manual page
