The Seiko 4205-0151 is a watch model based on the 4205 movement.
Parts List
280W45KN00 | crystal - crystal (inorganic) |
280W45KA00 | crystal |
280W45KA | crystal |
280W45KN | crystal |
60E15NS1 | crown - crown |
FF277BAA1 | case back gasket - case back gasket |
0J320BA1 | case back gasket |
ES266BAA1 | crystal gasket - (button gasket(10h)) |
ZLL34J | band - band |
Z706J | band - metal band |
12C55LKH | others - hour hand |
3AX115FCALS | others - second hand |
12C55LKM | others - minute hand |
12SC33T2 | others - second hand |
83133519 | others - case ring |
4205015161 | others - case |
83343359 | others - bezel |
86010571 | others - rotating bezel |
0J320BA11 | others - rotating bezel gasket |
0354427 | others - winding stem |
EK0115B04 | others - crown and stem gasket |
0801423 | others - date dial |
0884422 | others - holding ring for dial |
4205019MXB19 | others - dial |
42055L | others - machine code |
81332139 | others - spring |
84302294 | others - dial ring |
C200ES | others - push pin |
Caliber 4205

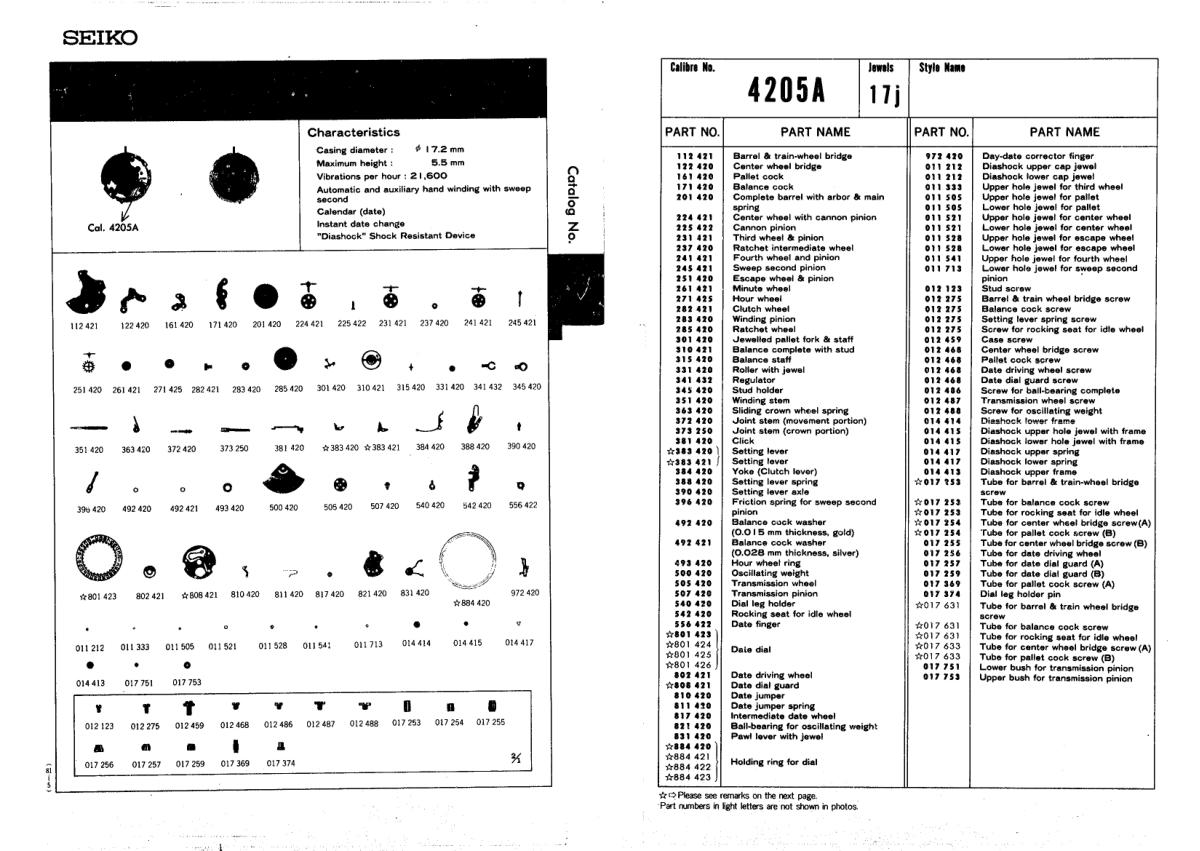

![Caliber manual page](https://www.theseikoguy.com/media/movements/4/4205A_caliber_en_1.jpg)

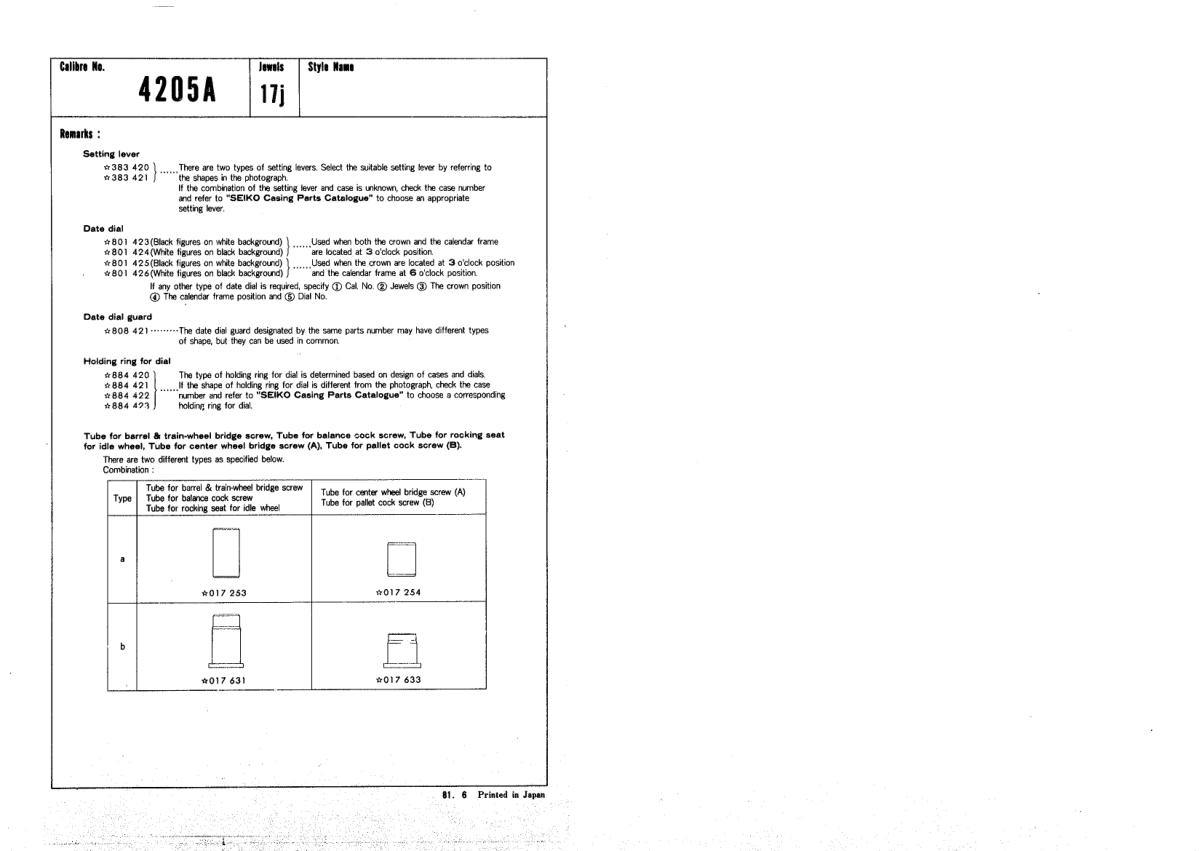

![Caliber manual page](https://www.theseikoguy.com/media/movements/4/4205A_caliber_en_2.jpg)
![Caliber manual page](https://www.theseikoguy.com/media/movements/4/4205A_caliber_en_3.jpg)
![Caliber manual page](https://www.theseikoguy.com/media/movements/4/4205A_caliber_en_4.jpg)

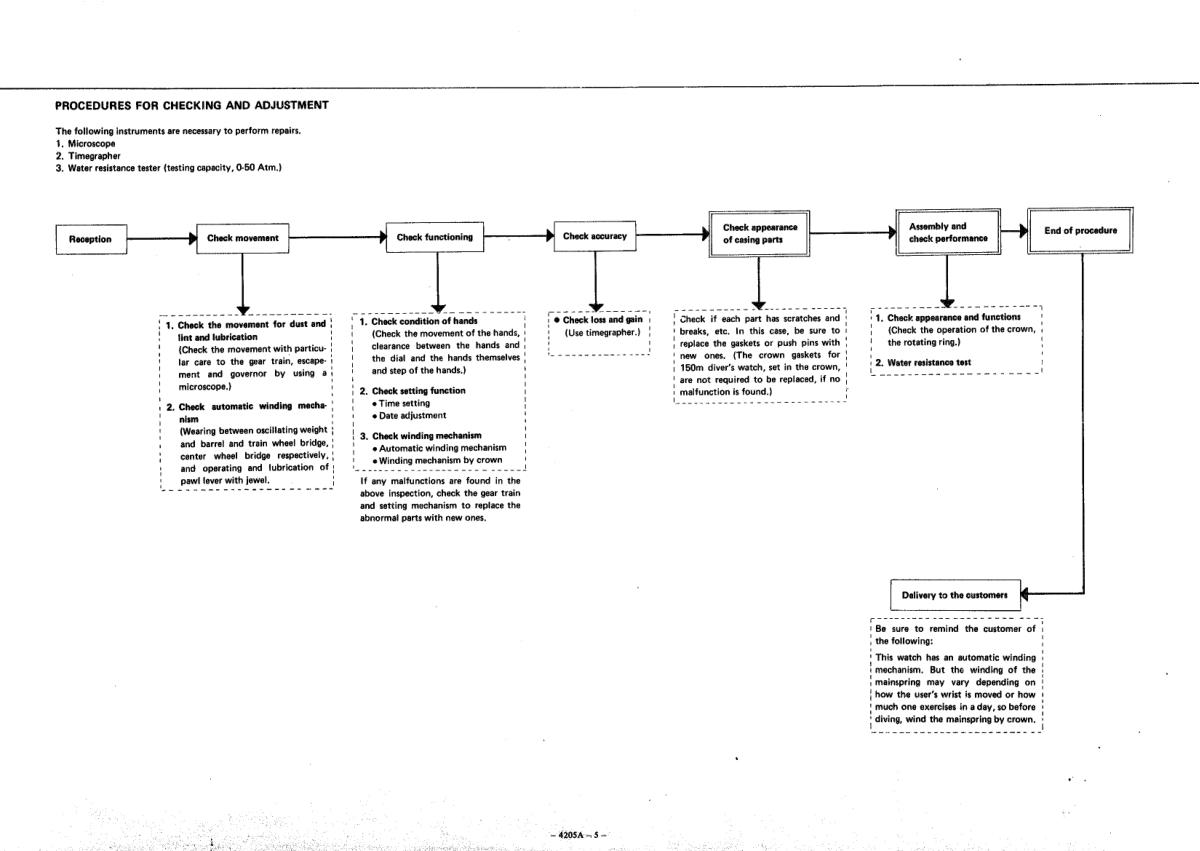

![Caliber manual page](https://www.theseikoguy.com/media/movements/4/4205A_caliber_en_5.jpg)
